Dallas DS18B20 Wiring Assembly PCB

2 Layers PCB 8.9 x 12.7 mm FR-4, 1.6 mm, 1, HASL with lead, Black Solder Mask, White silkscreen

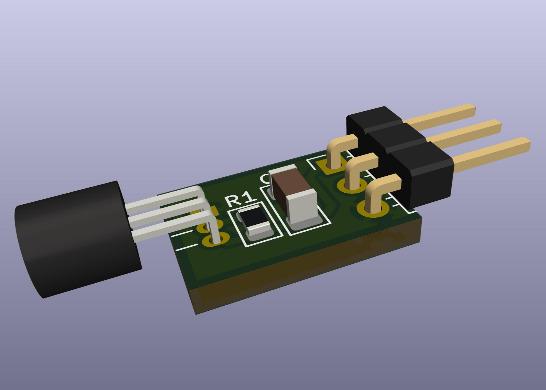

A small wiring assembly PCB for Dallas DS18B20 TO92 packages, suitable for parasitic and non-parasitic wiring.
