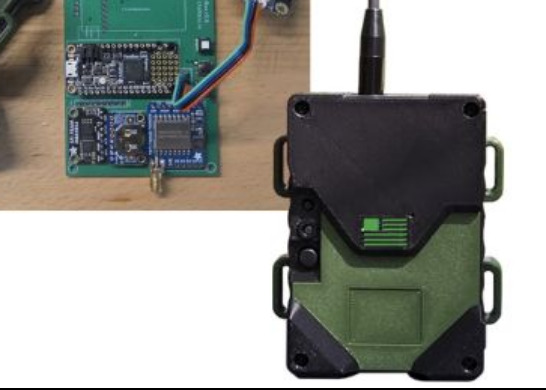

Blackout Comms Mesh Link - Designed by Altware
This mesh link (node) is compatible with all Blackout Comms devices. Unlike our other devices, this is based on SAMD51 and utilizes FRAM, both with the goal of achieving more efficient power consumption.

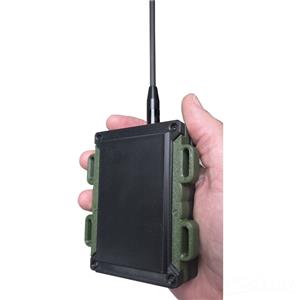

The enclosure linked to this project is large enough to accommodate a 5,000 mAh battery which should last around 5 days on a single charge. This is also the same model (and enclosure) I have attached to a DJI drone many times with no issue.
The video here shows Blackout Comms utilizing one of these nodes for mesh purposes.
