Dave Stocks

UNITED KINGDOM • + Follow Edit Project

0

Description

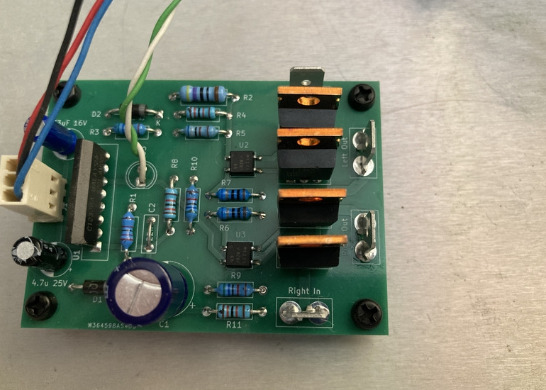

UPC1237 simple

DC offset protection for loudspeakers.

Can be built as two channel (with shared power supply) or mono.

To be fitted inside amplifier. Needs 0V, AC and Vcc connections.

Download Gerbers

Oct 25,2024

370 views

UPC1237 simple

2 Layers PCB 49.5 x 67.3 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen

Stereo (Mono) DC Offset protection for loudspeakers. Uses UPC1237 and MOSFETs.
