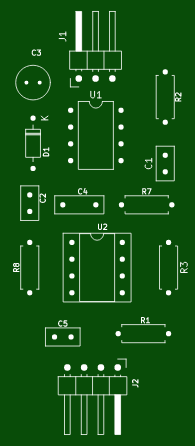

Acceleratore Gentili-F_Cu
This circuit is a push button e-bike throttle, press the throttle button, it gradually increases the speed, releasing it at a desired speed and pressing the other button (cruise) the speed is fixed until it is released
Acceleratore Gentili-F_Cu
