Description

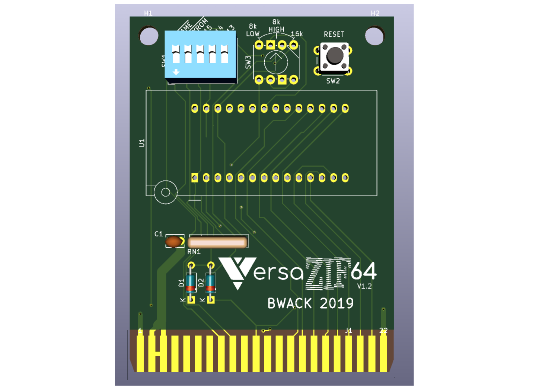

VersaZIF64 cartridge for Commodore 64
VersaZIF64 cartridge for Commodore 64 from bwack.
Same as Versa64 cart, exept it has Zero insertion force socket, which can simplify testing.
Additional info on bwack github: https://github.com/bwack/VersaZIF64
I reccomend You choose: Edge connector YES and Bevelling Yes (45°)
Schematic and Layout
VersaZIF64 shemantic
VersZIF64cart.pdf
CAD-Custom parts and enclosures
C64 VersaZif64 Cartridge Case on Thingiverse
https://www.thingiverse.com/thing:5162861
Oct 06,2025
98 views
VersaZIF64 cartridge for Commodore 64
Same as Versa64 cart but with zero insertion force socket.
98
2
0
Published: Oct 06,2025
