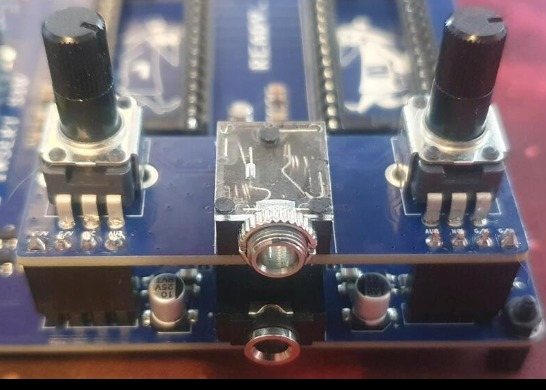

USBSID-Pico Volume daughterboard
This board is intended as optional volume board to control left and right audio independently.
- Plug and play compatible with v1.5+ boards.
- Compatibale with v1.0 and v1.3 boards with a small modification to provide voltage.
USBSID-Pico Volume daughterboard
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
PCBWay is not responsible
for issues caused by unsuitable parameter selections.
For more important ordering information, please refer to
