Tuned 1 power supply
This project works by feeding 110VAC into the transformer which converts it into 12.6VDC 1A through a common mode choke into a bridge rectifier feeding a built in buck-boost converter that outputs to 24VDC 1A and a voltage regulator which is variable via a trimmer, 0-9Vdc. the entire circuit is fused at 1A, the output of the 24Vdc and 9Vdc have a max current draw of 1A combined. My decision to create this was because there was no other boards that fit my needs, none ran off mains voltage, none ran at 1A full load, none fit.

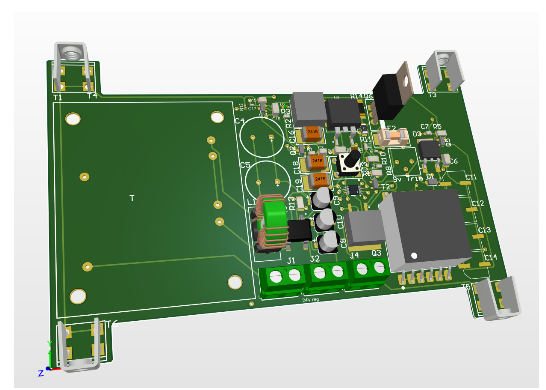

the board has 4 mounting brackets that are threaded and grounded for not only being able to ground the entire pcb for ground faults, it gives many options on the ability to mount in many ways
