Description
Trident - ESP32 Desk Dashboard
Trident is a custom circuit board powered by the ESP32 microcontroller. It connects a physical joystick to multiple screens, making it great for interactive hardware applications. It is built to run custom software like Spotify controllers, live weather dashboards, and other smart data displays.
Hardware Details:
Microcontroller: ESP32-DEVKITC-32UE
Input: Analog joystick module
Output: Three SPI TFT display screens
Connections: Standard female plug-in headers
Design Features: The board is modular and easy to manage. By using standard headers, you can plug in or swap out the screens and joystick without needing to solder them directly to the board. The layout is also fully prepared for automated manufacturing.

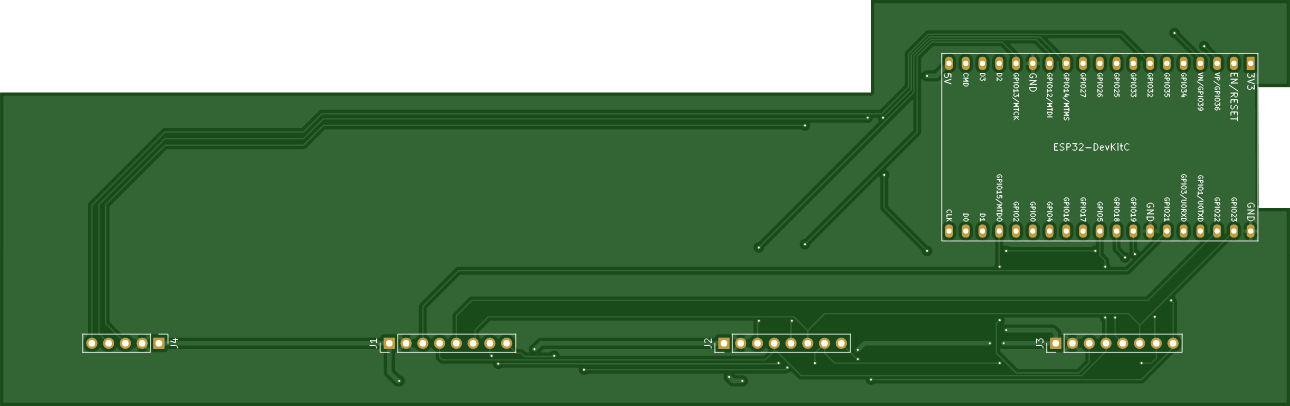

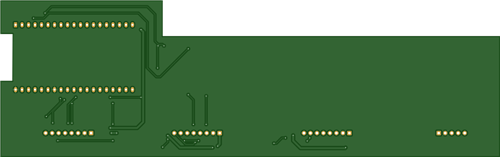

Schematic and Layout
Schematic
trident_pcb_v1.pdf
Jun 15,2026
12 views
Trident - ESP32 Desk Dashboard
An ESP32 dashboard with 3 screens, a joystick, and multi-software control, built on a custom dual-ground PCB layout.
