Taunoe Power Board v1

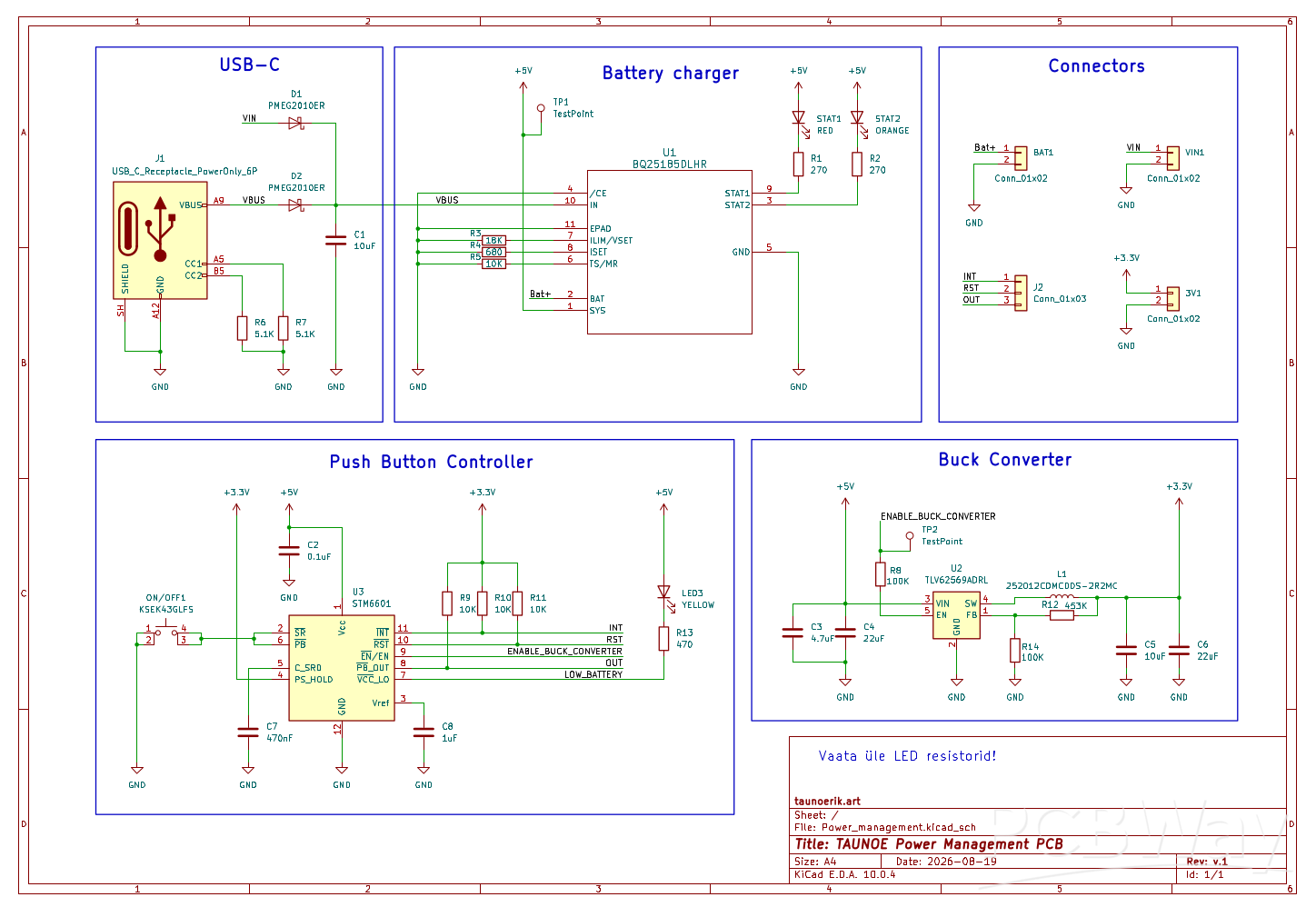

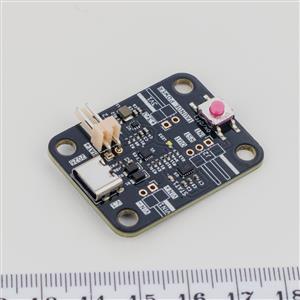

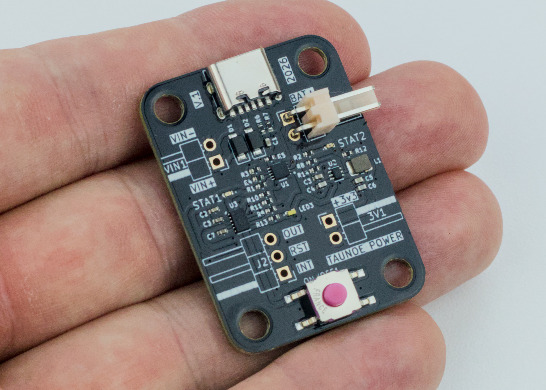

I acquired several Li-Po batteries and designed a printed circuit board (PCB) for their use and charging; the board features chips that handle battery charging, protection, and efficient voltage conversion to 3.3V, as well as a controller that enables single-button power on/off and sends a reset signal to the microcontroller.
Power input: USB-C or connector (2.54 mm).
BQ25185DLHR - Standalone Linear Battery Charger With Power Path, Factory Mode, and Battery Tracking VINDPM
STM6601 - Smart push-button on/off controller with Smart Reset and power-on lockout
TLV62569ADRL - synchronous step-down buck DC-DC converters optimised for high efficiency and compact solution size.
