Tools, APP Software Used etc.

Altium Designer

Description

Stark Compute Module v2.0

The Stark Compute Module v2.0 for Riemann Computing (Stark Drones/Starkcom Global) has been developed based on the established architecture of our patented compute module, ChainBoard, along with revisions of prior modifications. This new version boasts support for coaxial antennas and has a compact size of 3.15 inches by 2.17 inches. It includes Arduino Uno Rev 3 GPIO pin headers for shield compatibility, UART bridging, and features the ESP32-S3-WROOM-2-N32R8V for Octo Flash support, as well as the innovative SX1262 Core1262 LF/HF LoRa Module. MicroSD support remains intact, along with the same signal architecture. A forthcoming variant, which will be slightly larger, may incorporate an embedded mff2 eSim and a built-in dual 18650 Lithium Battery enclosure.

CAD-Custom parts and enclosures

Antenna Holder for Tripod

Swanky Jaagub (6).stl

Download BOM(Bill of materials)

Oct 24,2024

664 views

Stark Compute Module v2.0

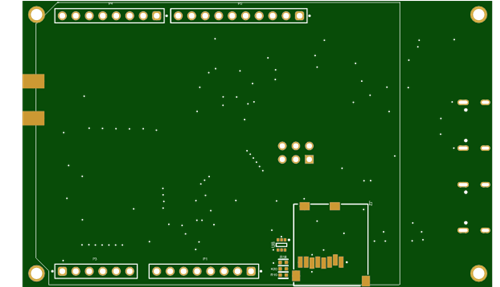

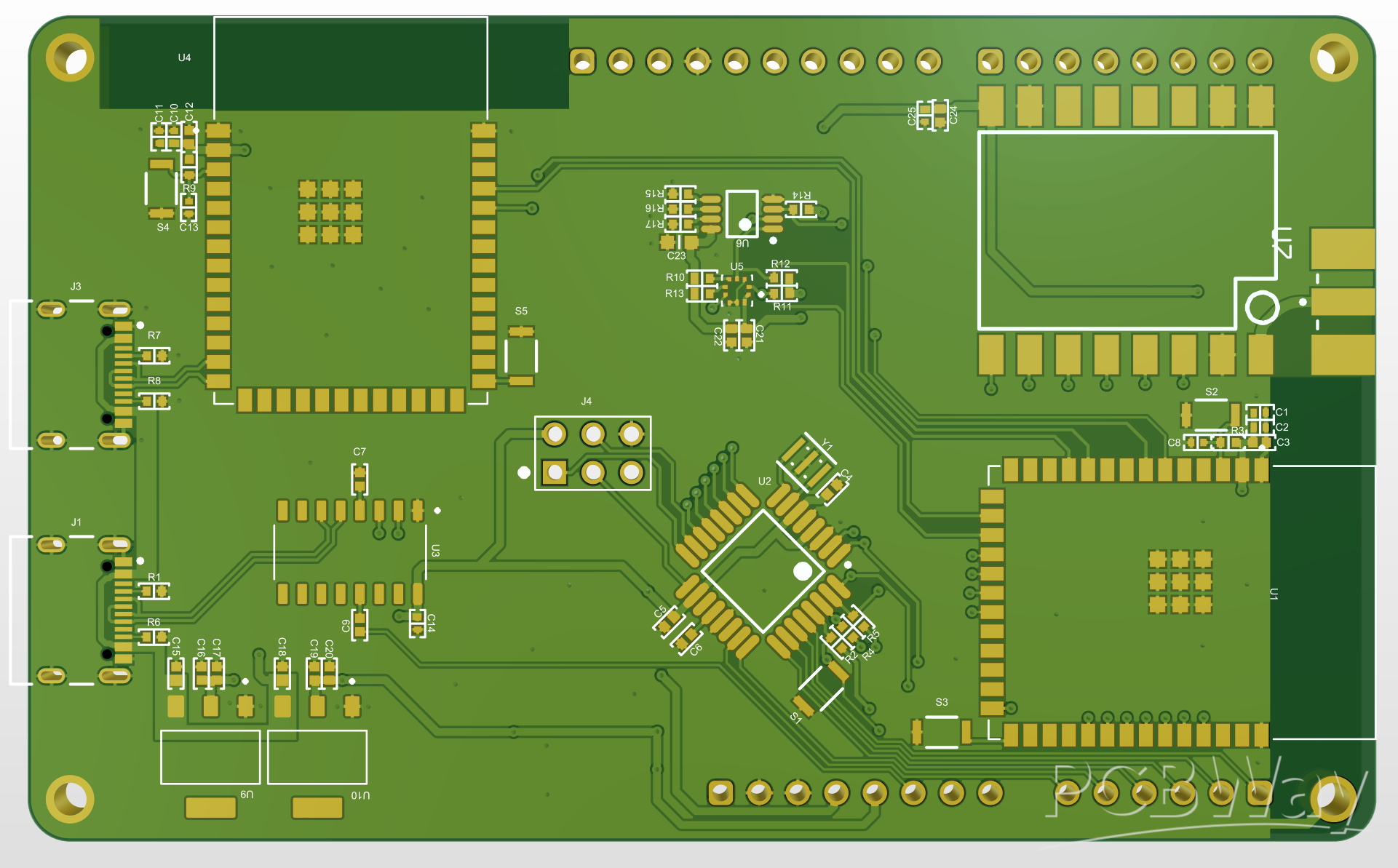

4 Layers PCB 55.1 x 88.9 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen

The Future of CubeSat Logic Boards

664

Published: Oct 24,2024
