Project Overview

The Smart Shaker Device is a high-performance embedded platform designed to bridge the gap between virtual physics and physical sensation in professional simulation environments. Traditional setups are often inefficient, relying on standard PC audio stacks and bulky consumer amplifiers that introduce non-deterministic latency.

This solution consolidates the entire processing chain, high-speed networking, advanced DSP filtering, and power amplification, into a single, compact, industrial-grade PCB designed with KiCad.

Functional Principle

The system acts as a real-time bridge that converts raw numerical telemetry into tactile motion. The workflow is fully managed on-board to ensure maximum stability:

• Data Acquisition: The device receives telemetry packets via Ethernet (UDP) directly from the simulator's physics engine.
• DSP Processing: A high-speed 480 MHz MCU executes advanced algorithms, such as the dedicated Filters, to smooth out network jitter without introducing perceptible latency.
• Physics-Based Synthesis: Unlike many commercial software solutions that merely trigger pre-defined effects or generic synthesized signals based on events (like suspension movement thresholds), this device synthesizes audio waveforms in real-time where amplitude and frequency correspond directly to the vehicle's actual physical forces. This ensures a dynamic and authentic response to every nuance of the simulation.
• Power Delivery: A high-resolution DAC and a Class D amplifier convert the digital signal into 50W of peak power per channel to drive tactile transducers.

KiCad Design & Engineering Highlights

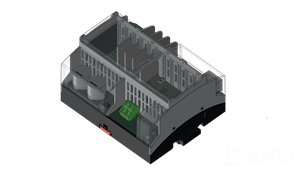

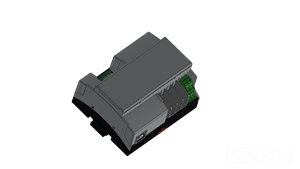

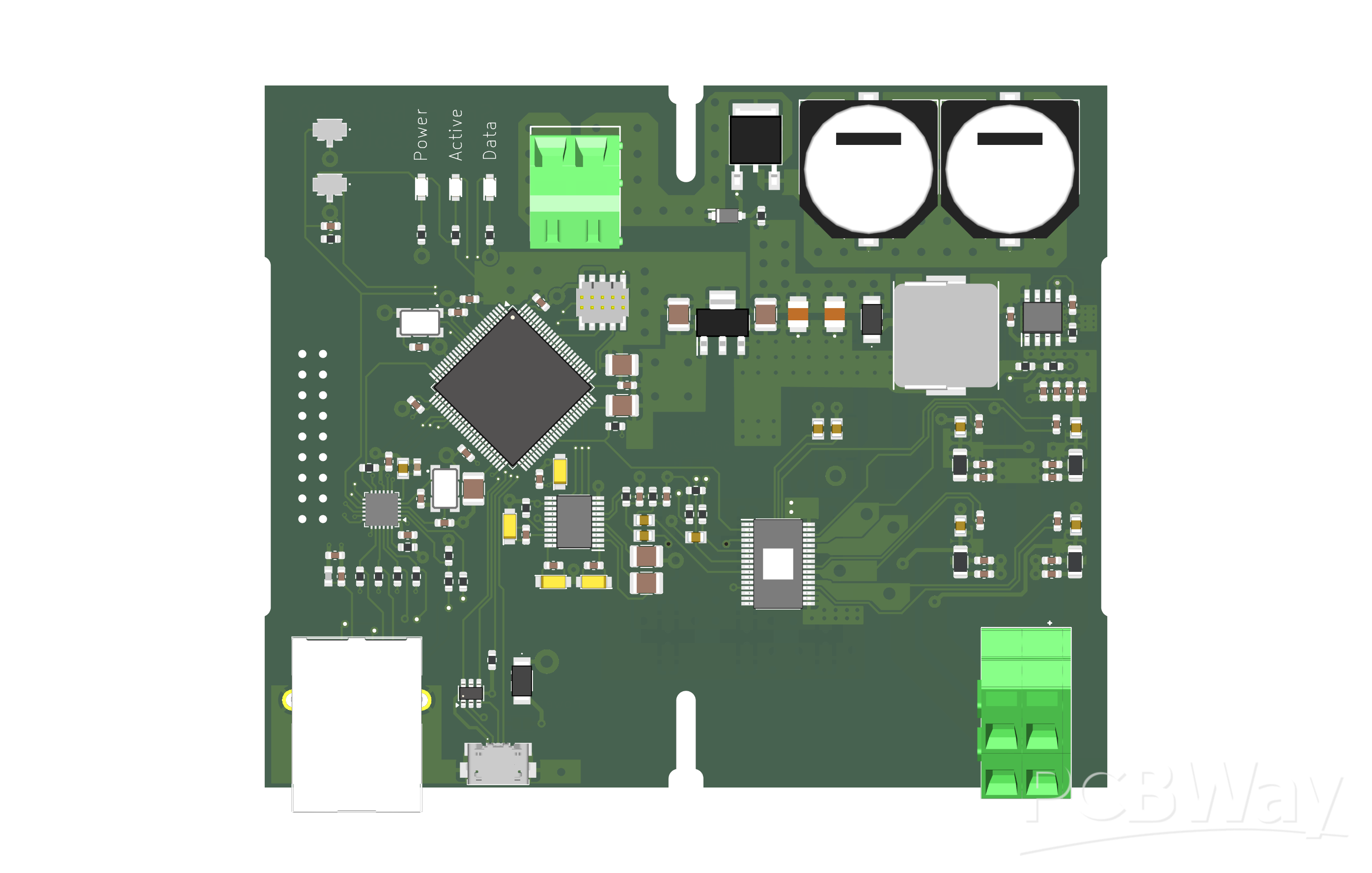

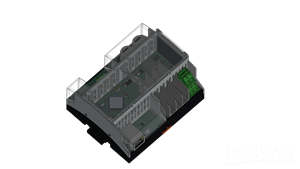

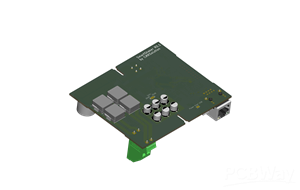

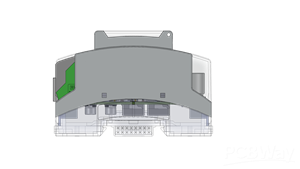

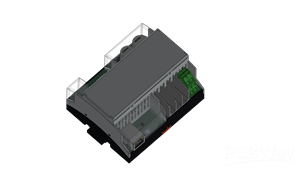

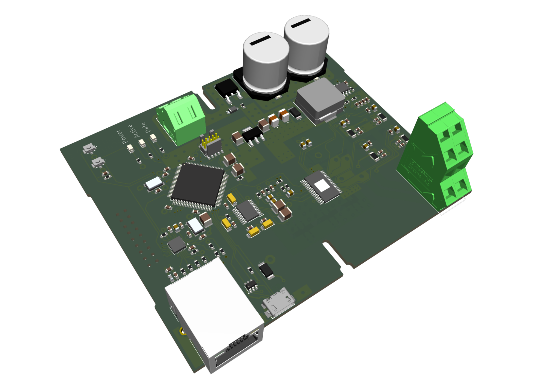

The PCB layout showcases mixed-signal engineering required to manage high-current audio alongside high-speed digital logic. Because this version uses a common ground strategy, return paths for high-frequency switching currents are meticulously routed to prevent interference with sensitive analog references. Reliability is further enhanced by an automotive-grade buck converter and active reverse polarity protection. Additionally, the system features hardware auto-recovery: the MCU monitors the amplifier’s fault status via hardware interrupts and can perform a controlled reset, allowing the device to recover automatically from thermal or short-circuit events.

Strategic Advantages

By processing data locally and bypassing the Windows audio stack, the device achieves deterministic "zero-latency" feedback. The Smart Shaker Device offers superior industrial reliability by using reinforced THT pads with strain relief for high-current cabling.

This vertical integration simplifies simulation rig wiring and significantly reduces the overall physical footprint.

Future Outlook: Modular Evolution:

The upcoming iteration (Revision 0.2) will transition the platform into a modular distributed architecture with the following upgrades:

• Dynamic Power Limiting: I2C-controlled digital potentiometer to adjust hardware amplifier limits (PLIMIT), protecting various transducer models via software.
• Real-time Input Monitoring: ADC-based diagnostics using an 11:1 partition to continuously track the 24V power rail status.
• Industrial Touch Interface: Dedicated FPC connector for Phoenix Contact industrial touchscreen enclosures (BC 161,6), enabling on-device standalone setup.
• Total Galvanic Isolation & Scalability: Implementation of digital isolators and a Daisy-Chain I2S bus to scale the system for large-scale, multi-channel motion rigs.

Key Technical Specifications

Core: 32-bit Arm Cortex-M7 processor (480 MHz).

Networking: High-speed Ethernet PHY with RMII interface.

Audio Output: High-efficiency Class D amplifier providing 2x50W BTL power.

Power Input: 12-24VDC with active hardware protection and LC EMI filtering.
