Andrea Calo'
ITALY • + Follow
Tools, APP Software Used etc.
|
AltiumAltium
|
Description
Smart_Glasses_Probe_sensor_Gerber

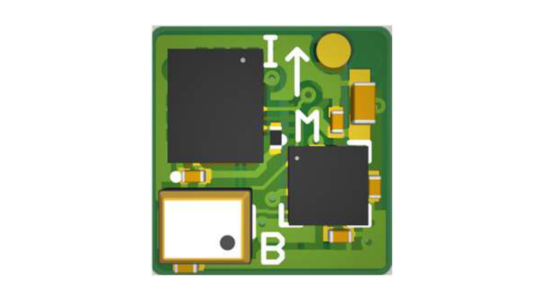

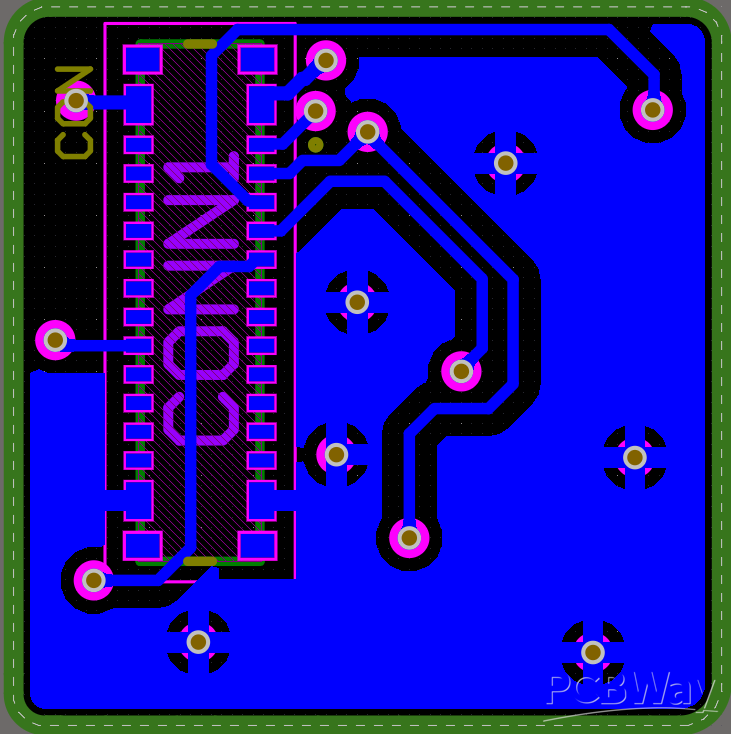

2-layers PCB that collects data from low-power magnetometer, barometer and IMU and send it to a main board (not present in the project) through I2C for data fusion for smart glasses application. It can be connected to another board using the 24 pin connector placed on the bottom layer of the PCB.

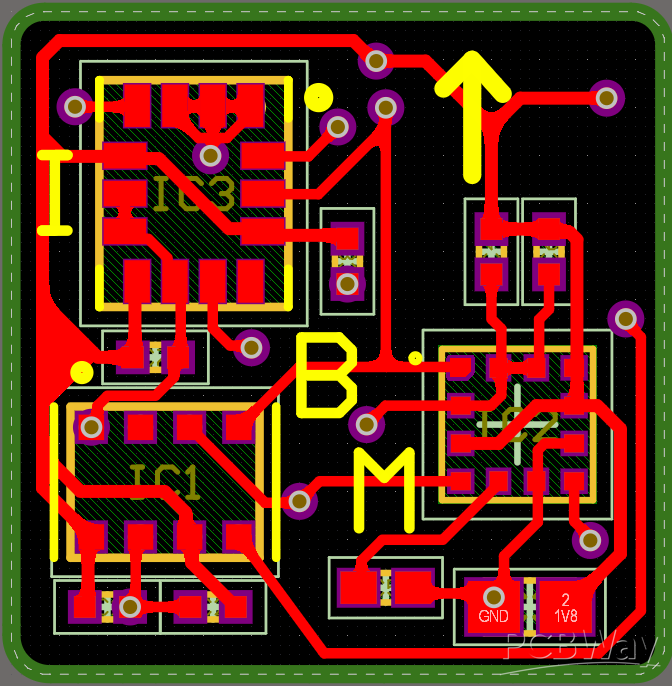

Schematic and Layout
Schematics.pdf
May 02,2026
23 views
Smart_Glasses_Probe_sensor_Gerber
2 Layers PCB 8.8 x 22.6 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen
Data collection for smart glasses application
23
0
3
Published: May 02,2026
Standard PCB
Download Gerber file 0
BOM(Bill of materials)
Centroid file
Other files for Assembly
PCBWay Donate 10% cost To Author
File Last Updated: 2026/05/05 (GMT+8)
File update record
2026-05-0517:08:51
Other files for Assembly are updated.
2026-05-0517:08:51
Gerber file is updated.
2026-05-0516:56:05
Other files for Assembly are updated.
2026-05-0516:56:05
Centroid file is updated.
2026-05-0516:56:05
Parts List (BOM) is updated.
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
