Description

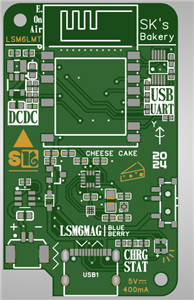

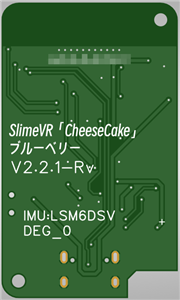

SlimeVR Cheesecake Blueberry NO MAG

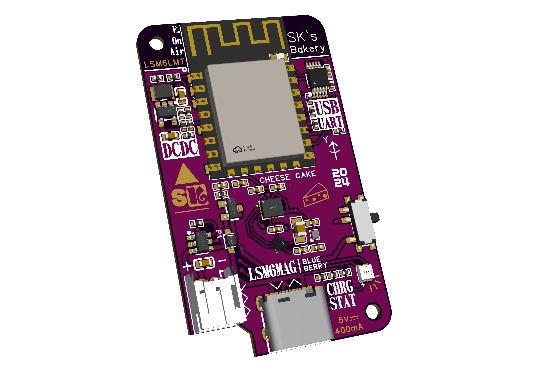

The new version of LSM6DSV includes a battery connector and a magnetometer (magnetometer has been removed in this version as it suffers in most home environments due to the abundance of metal and other interference from electronic devices)

The battery connector have 2 types to choose: JST2.0mm and JST1.25mm. Regardless of the type of connector, the positive of the battery is always on the left side.

When setting up the board make sure to use 1.0mm as the thickness.

Download BOM(Bill of materials)

Apr 19,2025

920 views

SlimeVR Cheesecake Blueberry NO MAG

Version of the SlimeVR Cheesecake Blueberry with no Mag as it has been found to cause more issues than it is worth in most homes
