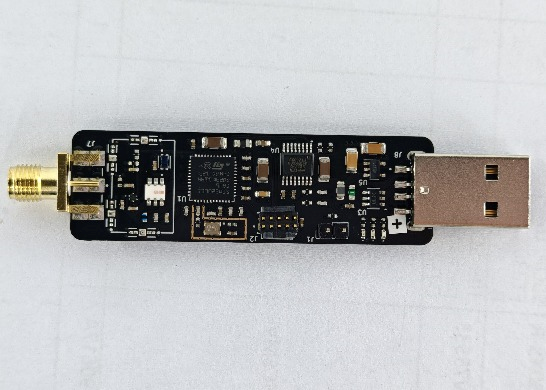

STM32WLE5 RF dongle
The STM32WLE5 RF dongle is a compact USB-controlled laboratory Sub-GHz radio built around the STM32WLE5C8U6 MCU.
Highlights:
- 150–960 MHz RF range through one bidirectional, half-duplex RF port.
- LoRa and FSK/GFSK transmit and receive, plus MSK/GMSK and BPSK transmit configuration.
- Packet TX/RX, LoRa channel-activity detection, continuous wave and preamble TX, radio calibration, and diagnostics.
- USB Virtual COM Port control with COBS-framed commands and CRC-16/XMODEM integrity.
- Event-driven target software architecture.
You can find the complete hardware and software design for this project in the following GitHub repository: https://github.com/FBS93/STM32WLE5_RF_dongle
