SSR_SolidStateRelay_DIY
Español:
Relevo de estado sólido basado en un optotriac, tiene posibilidad de disparo del TRIAC a través de un DIAC.
Cuenta con una red snubber si se usa con cargas inductivas como motores. Se recomienda que las resistencias del lado de potencia AC, sean de 1/2W o 1W preferiblemente.
Tiene dos conectores de tipo borne que pueden usarse indistintamente para la fuente AC y la carga, siempre que se conecten la fuente a un mismo conector y la carga al otro.
La resistencia de suicheo del MOC está calculada para una entrada de 24V, puedes modificarla según tu necesidad (R3 1.6K - 1.8K)
Te adjunto esquemáticos y cara de componentes.
English:
Solid state relay based on an optotriac, it has the possibility of TRIAC triggering through a DIAC.
It has a snubber network if used with inductive loads such as motors. It is recommended that the resistors on the AC power side, are 1/2W or 1W preferably.
It has two terminal type connectors that can be used indistinctly for the AC source and the load, as long as the source is connected to the same connector and the load to the other.
The MOC's resistance is calculated for a 24V input, you can modify it according to your needs (R3 1.6K - 1.8K).

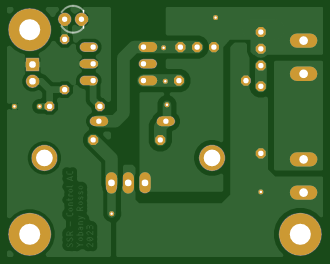

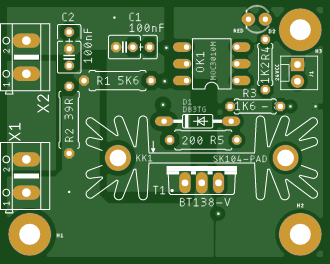

I attach schematic and component side.
