Description
SOIC-28 SSOP-28 Breakout Board
SOIC-28 SSOP-28 Breakout Board for easy breadboarding
Pin Header 2.54mm
PCB Size : 24.7mm x 37.6mm

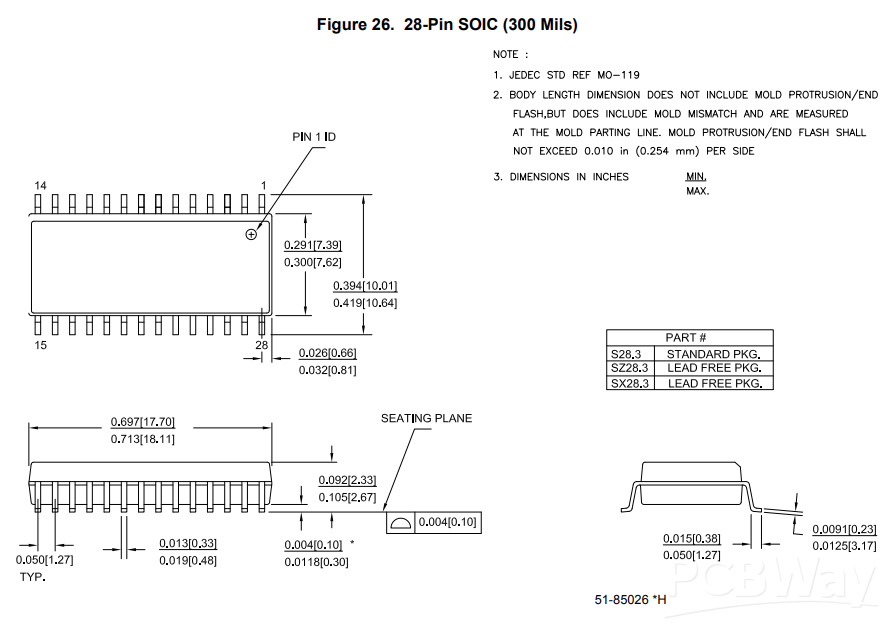

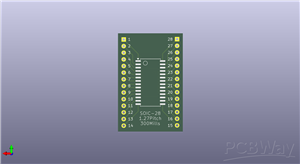

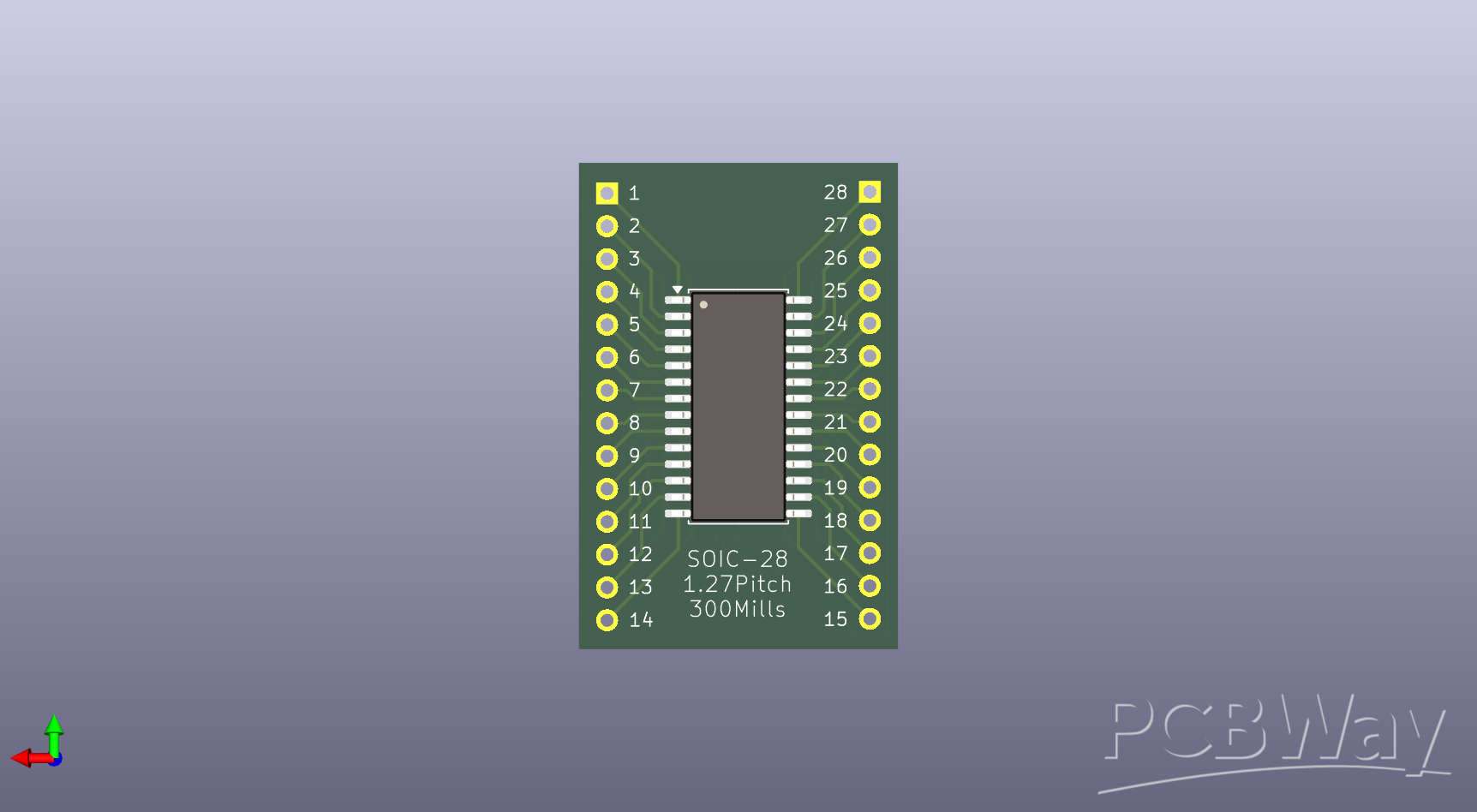

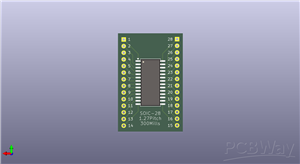

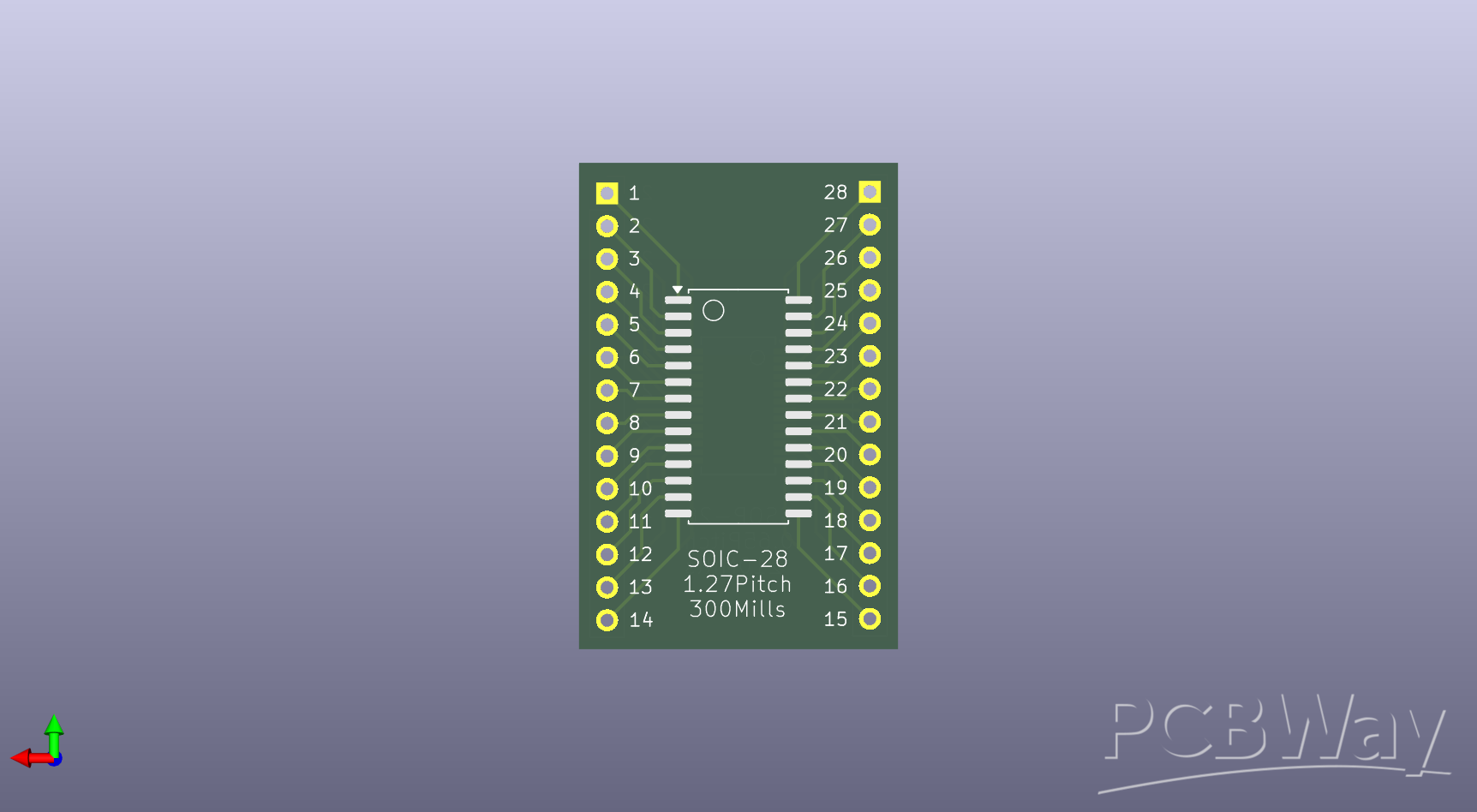

SOIC-28 1.27Pitch 300Mills Package :
--------------------------

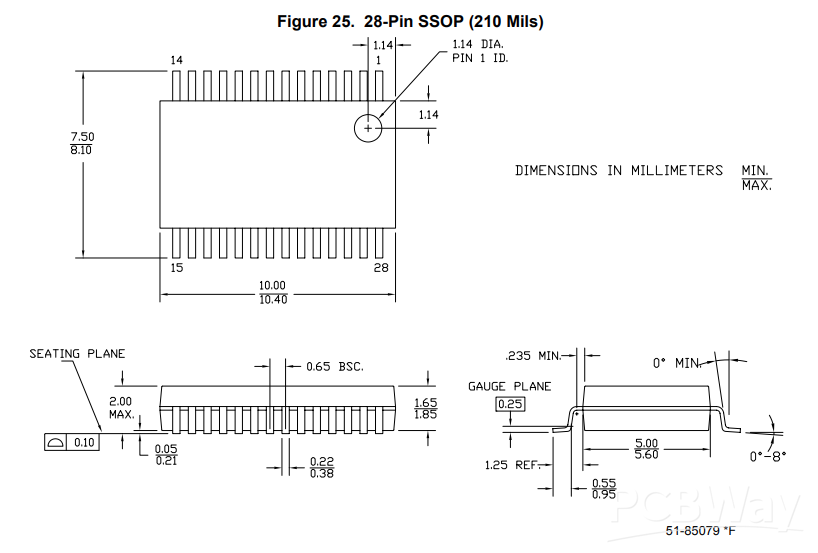

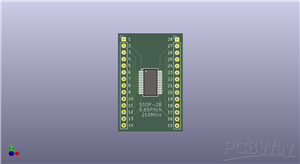

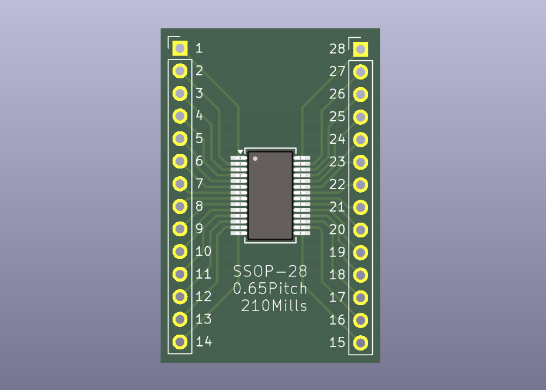

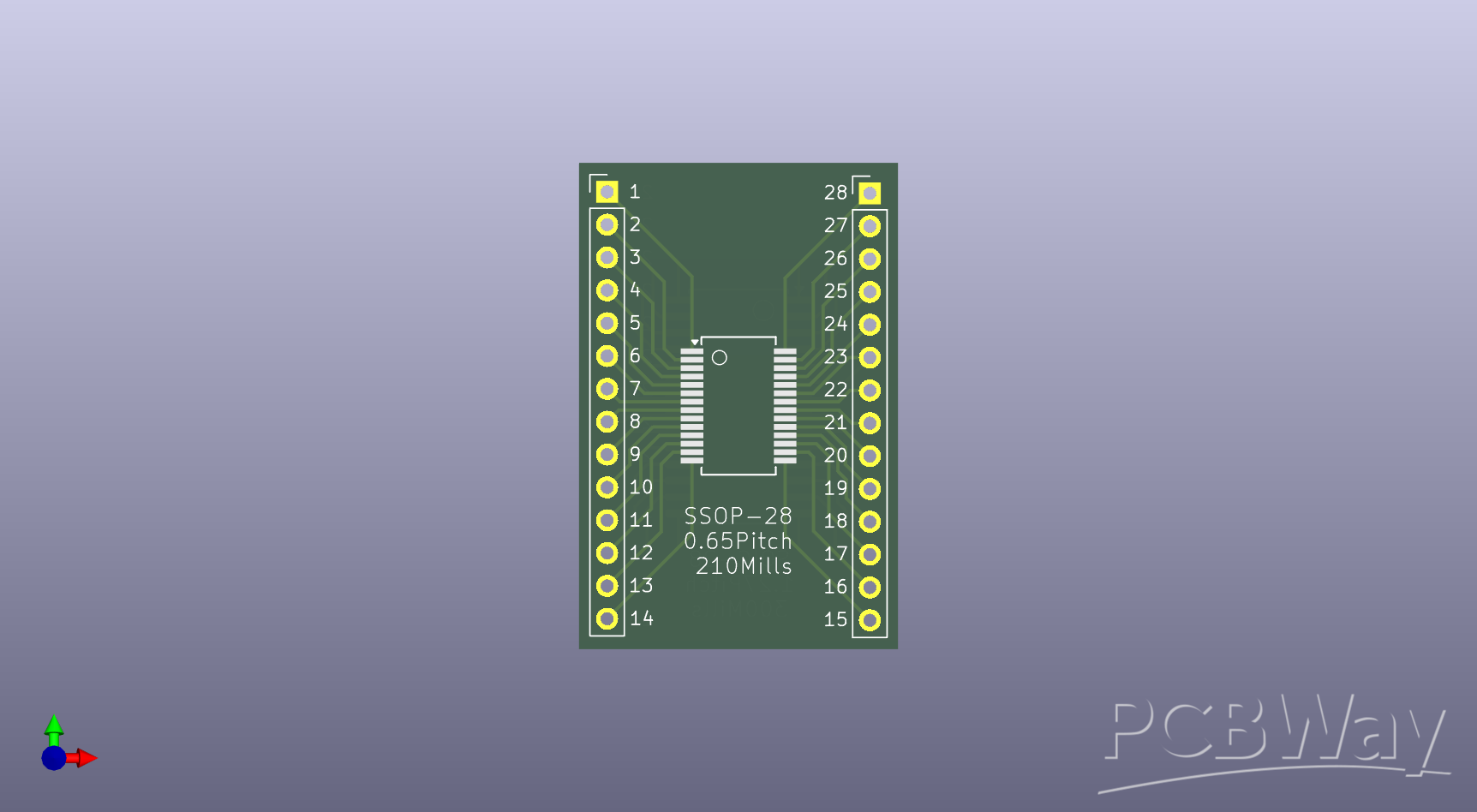

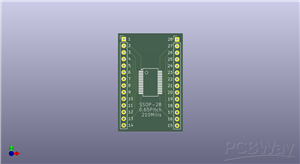

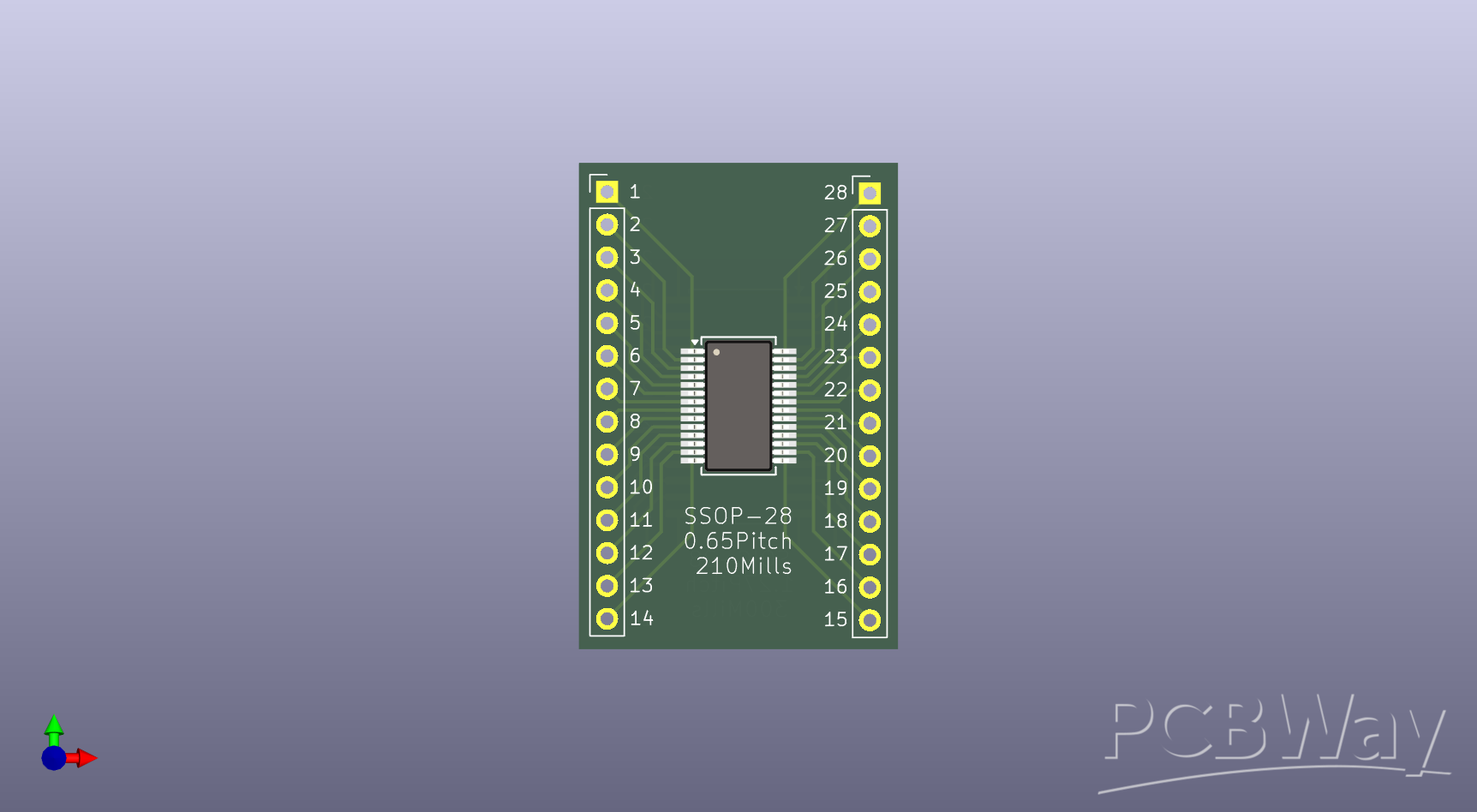

SSOP-28 0.65Pitch 210Mills Package :
Schematic and Layout
Schematics
so28_ssop28_breakout.pdf
Kicad_Files
SO28_Kicad_Files.zip
Dec 17,2025
141 views
SOIC-28 SSOP-28 Breakout Board
SOIC-28 SSOP-28 Breakout Board for easy breadboarding
141
0
0
Published: Dec 17,2025
Standard PCB
Download Gerber file 3
BOM(Bill of materials)
PCBWay Donate 10% cost To Author
File Last Updated: 2025/12/24 (GMT+8)
File update record
2025-12-2421:48:39
Gerber file is updated.
Only PCB
PCB+Assembly
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
