SCHRACK TECHNIK LED PANEL

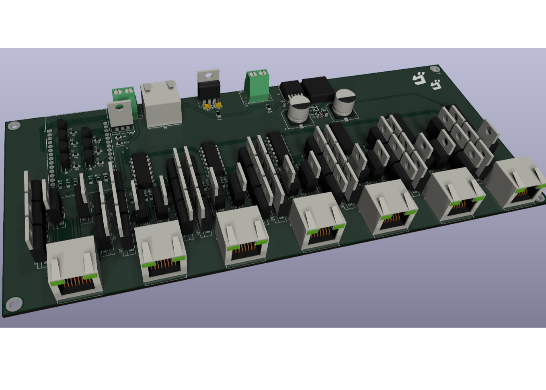

This project was commissioned by Schrack Technik. The project consists of a panel from ARODEM, into which LED lights from Schrack Technik were installed. Our task was to develop a control unit for operating a 45x9 array of LED lights.
The main task was to implement control of the LED lights using shift registers and to design a switching power supply (24–5 V).
