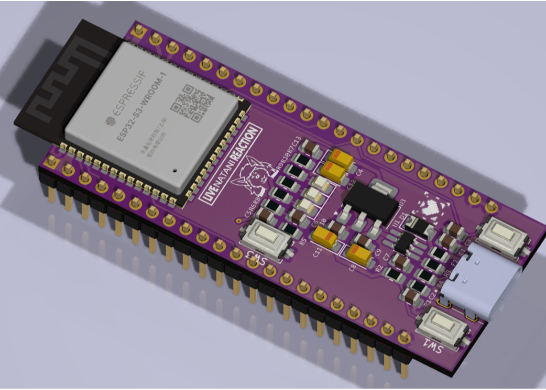

NatSi-ESP32S3-DevKit
The NatSi-DevKit is an ESP32-S3-based development board that supports 2.4 GHz Wi-Fi and Bluetooth 5; the chip is capable of operating at 240 MHz, and the board features 45 programmable GPIO pins.
The main difference from other development boards is that the NatSi-DevKit includes a micro SD card slot connected via SPI, 1 built-in touch switch, and 2 LEDs The NatSi-DevKit has a compact and elegant design, and its dimensions are compatible with any solderless breadboard available on the market.
NatSi-ESP32S3-DevKit
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
