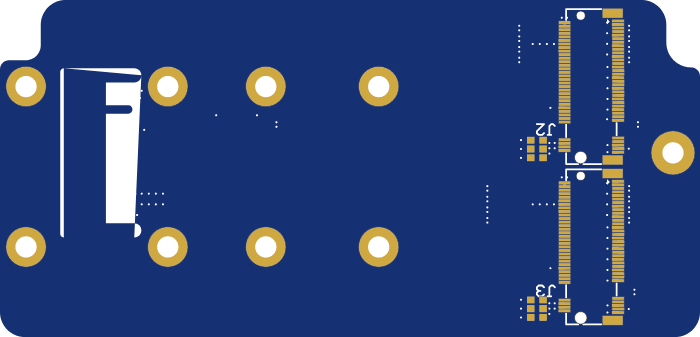

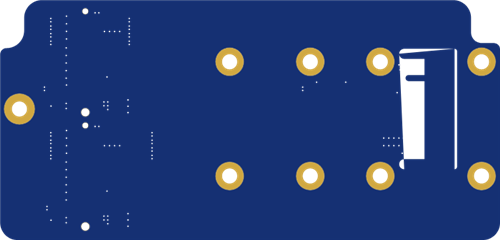

Rock 5B bifurcation board
This is @seni project from radxa forum, set up as pcb to split single 4x pcie into 2x2x
to get it to work just use any image for rock 5b+ where there are already two m.2 ports ready to use
Rock 5B bifurcation board
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
