Description

RF Antenna Eval Board 80 MHz - 3 GHz

This RF antenna switching board provides selectable routing between three wideband antennas and a direct RF connection path. The supported antenna frequency ranges are 80–450 MHz, 400–900 MHz, and 800–3000 MHz, enabling broad RF coverage across VHF, UHF, and microwave bands.

A direct-connect RF path is also included for bypass or external signal routing applications. Antenna selection is controlled through three 3.3 V GPIO logic inputs, allowing easy integration with microcontrollers, FPGA systems, or embedded RF platforms. The board is designed for flexible antenna management in communication, SDR, and RF monitoring applications.

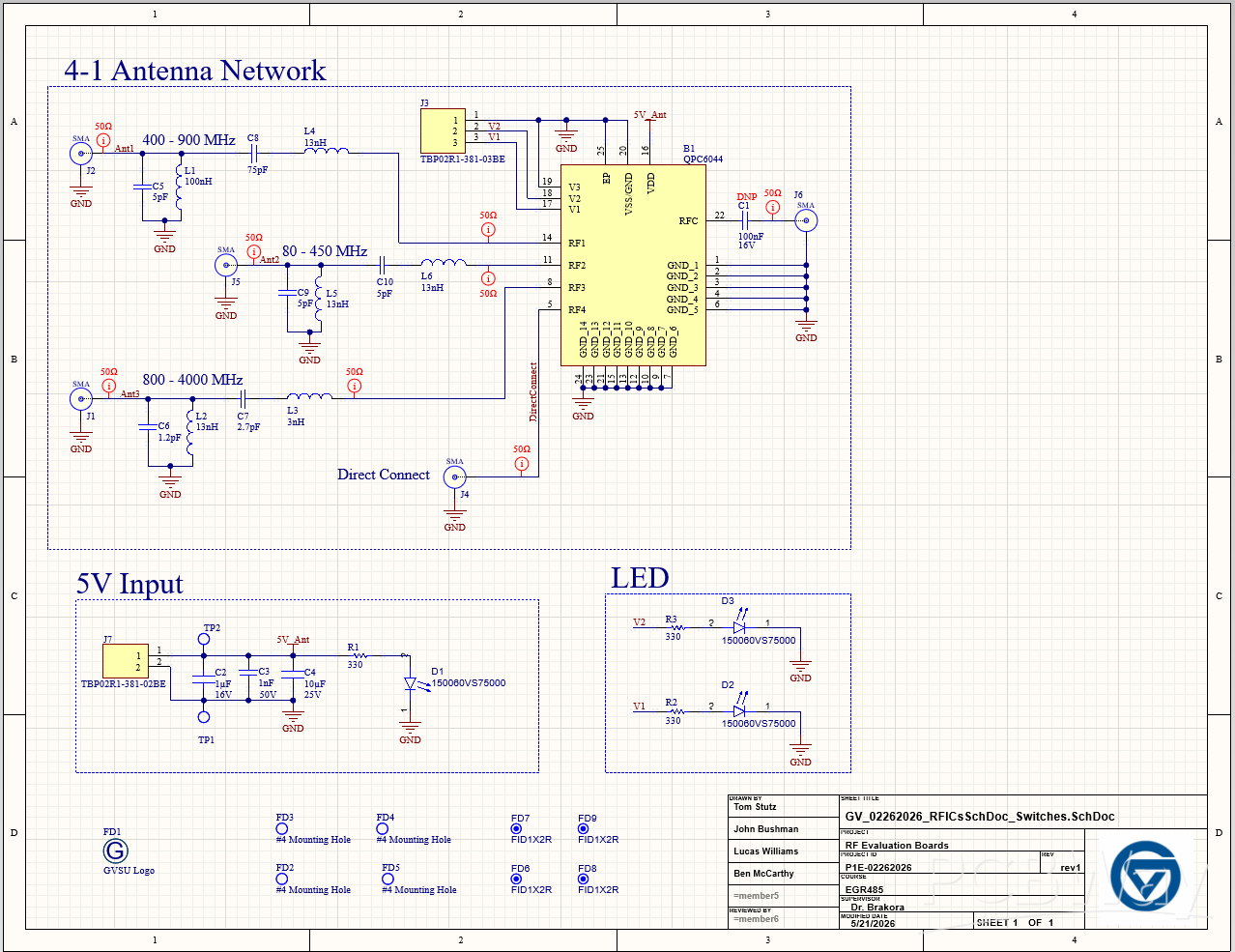

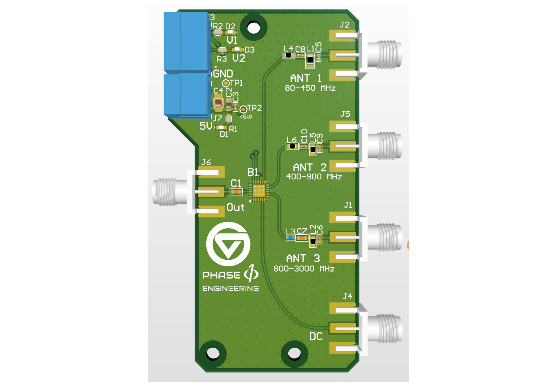

Schematic and Layout

Screenshot 2026-05-26 124546.png

Download Gerbers Download BOM(Bill of materials)

May 27,2026

11 views

RF Antenna Eval Board 80 MHz - 3 GHz

4 Layers PCB 82 x 44 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen

RF antenna switch board with 3 selectable antennas (80 MHz–3 GHz) plus direct path, controlled by 3.3 V GPIO inputs.
