Description

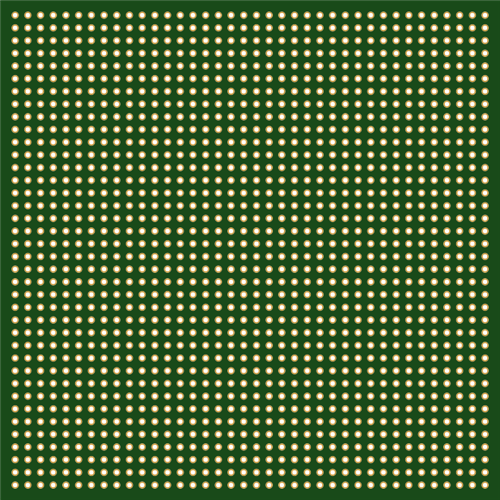

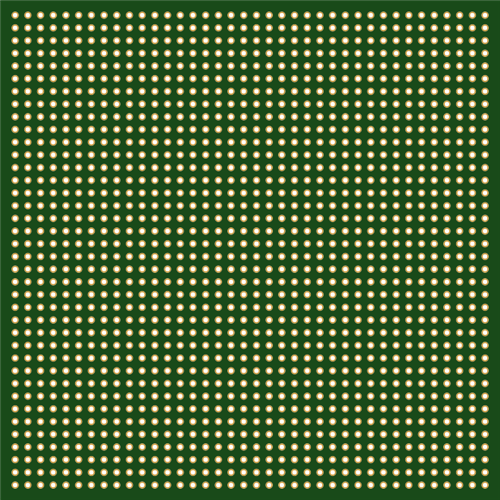

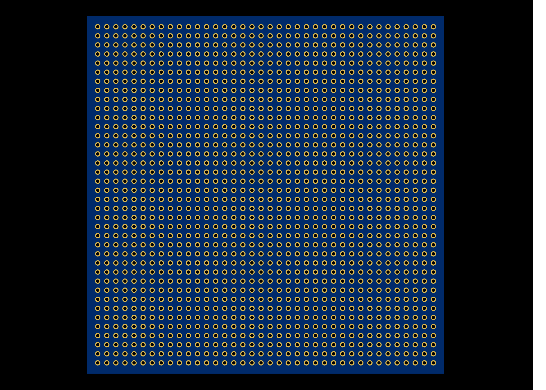

Prototype Board, 2.54mm, 100x100mm
The Prototype Board (100x100mm, 2.54mm pitch) is a general-purpose PCB designed for prototyping electronic circuits. It provides a grid of plated through-holes spaced at a standard 2.54mm (0.1 inch) pitch, allowing easy soldering of components and jumper wires.
Features:
- Size: 100mm x 100mm
- Hole Pitch: 2.54mm (0.1 inch)
- Material: FR4
- Copper Layer: Double-sided
- Plated Holes: Compatible with through-hole components
- Mounting: Can be cut to custom sizes or mounted in enclosures
Applications:
- Prototyping circuits before PCB manufacturing
- Testing and debugging electronic components
- DIY electronic projects and hobbyist applications
- Custom circuit design for Arduino, Raspberry Pi, and other microcontrollers
Mar 06,2025
372 views
Prototype Board, 2.54mm, 100x100mm
The Prototype Board (100x100mm, 2.54mm pitch).
372
0
0
10.00 (1)
Published: Mar 06,2025
