Patternflow: An LED synthesizer

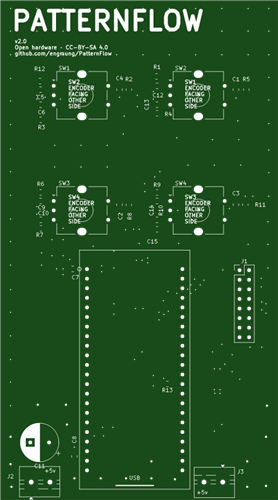

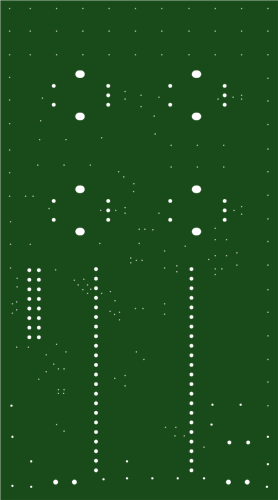

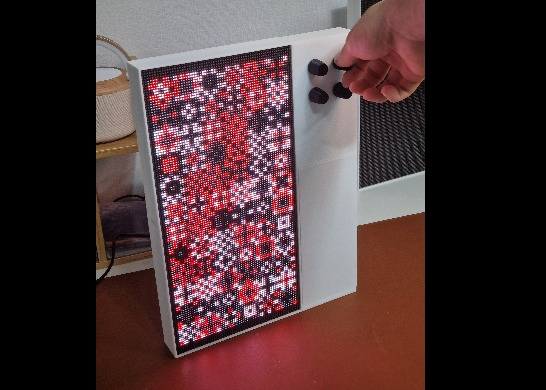

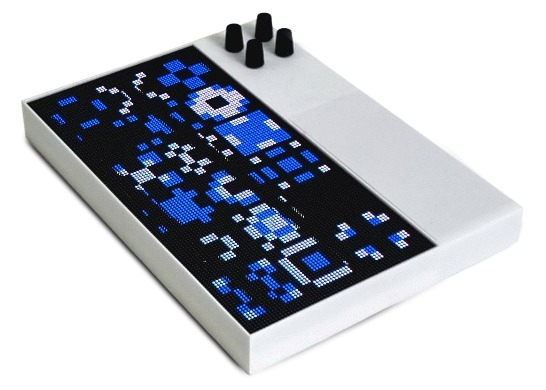

Patternflow is an open-source LED synthesizer that lets users play generative light patterns with four rotary encoders. It uses an ESP32-S3 and a 128×64 HUB75 RGB LED matrix to create real-time interactive visuals.
The project is inspired by Nam June Paik’s Participation TV (1963), reinterpreting participation as hands-on visual creation. Instead of only watching the artwork, users directly shape and perform the light patterns.
Patternflow includes runtime pattern switching, a browser-based firmware flasher, a Live Editor, and AI-assisted custom pattern creation.

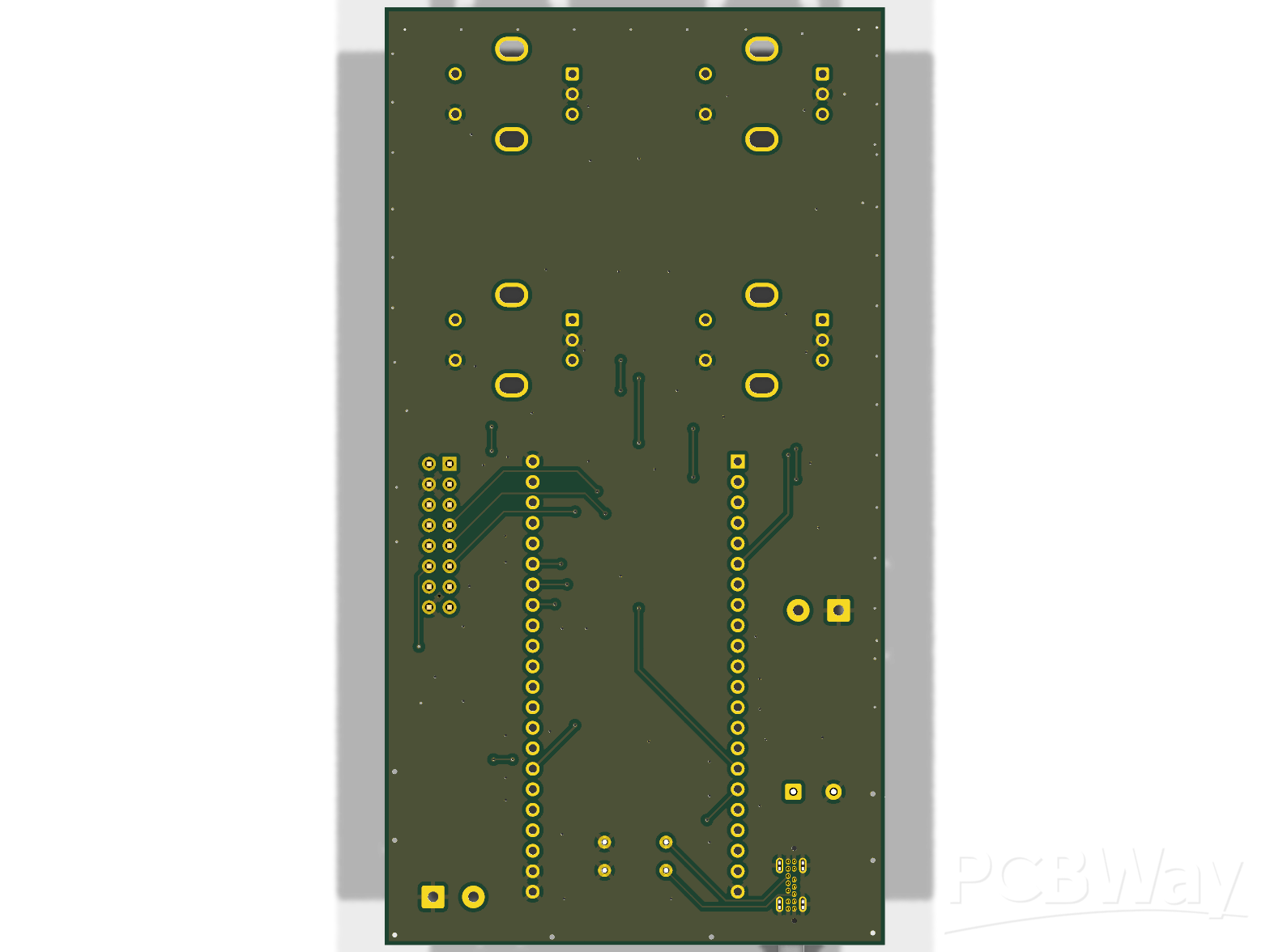

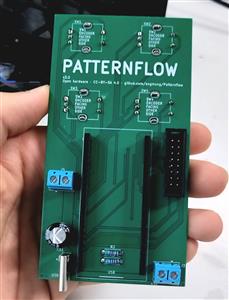

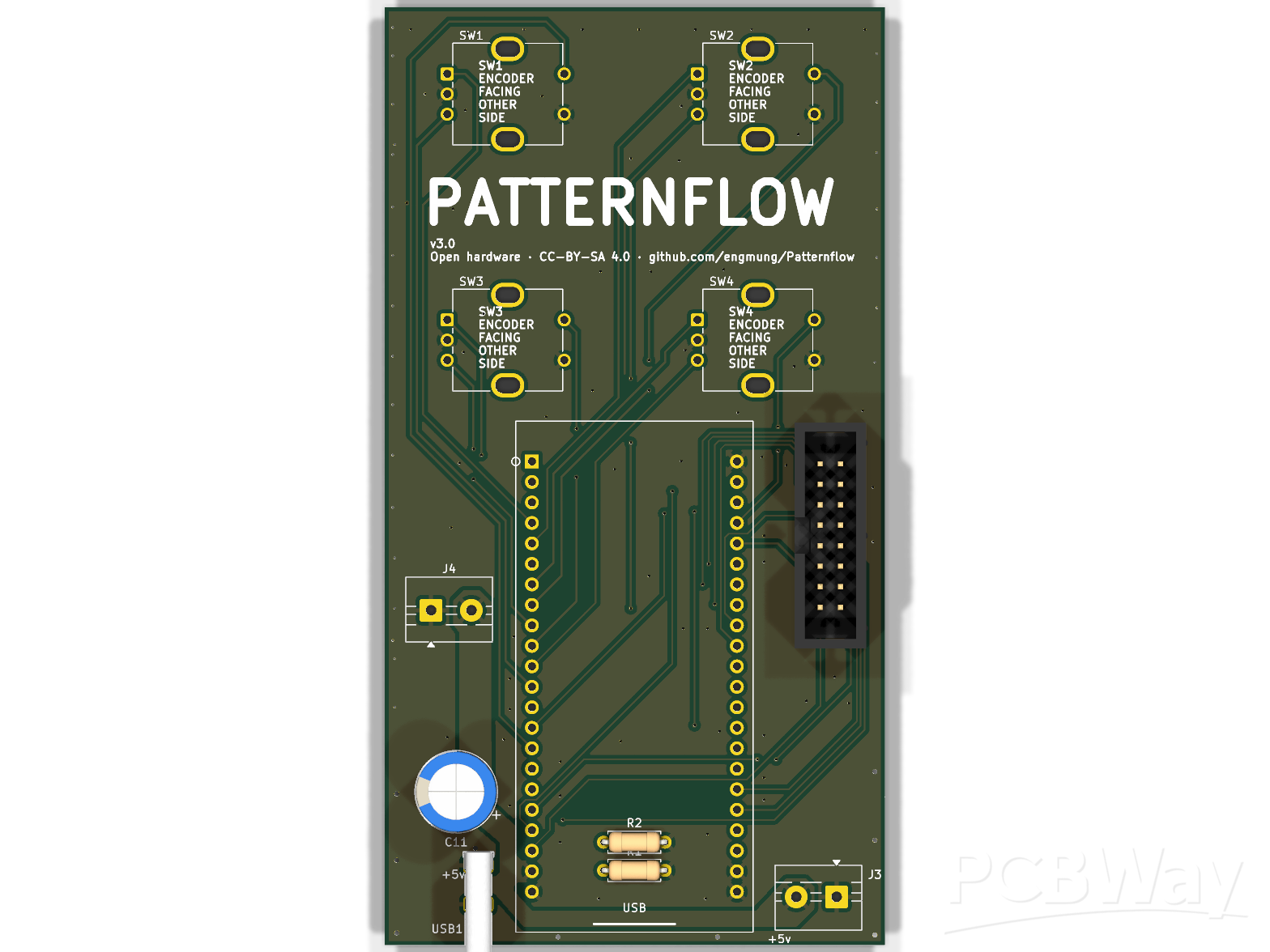

This page provides a brief project overview. For the complete documentation, detailed build guide, full BOM, exact sourcing links, firmware, hardware files, enclosure files, and step-by-step assembly instructions, please visit:
Official website: https://patternflow.work/pcbway
GitHub repository: available from the official website above
Patternflow is released under the MIT License for firmware and web code, and CC BY-SA 4.0 for hardware and design files.
Patternflow: An LED synthesizer
