PCI Express riser for Fujitsu S900

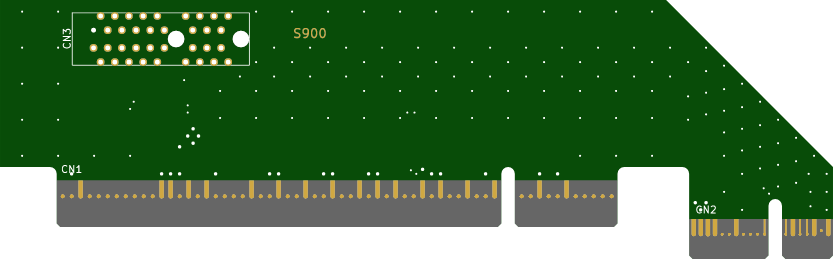

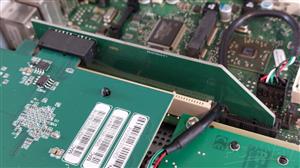

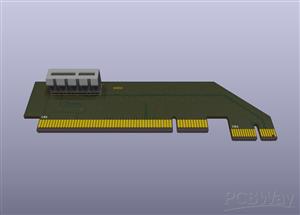

This riser allows installing of PCI Express x1 cards in Fujitsu S900 machine, as well as other machines where Mini-ITX D3003 motherboard is installed. Since PCI Express slot pinout is proprietary, simple ribbon cable risers won't work. Some pins are shuffled and there is no 3.3V power supply at all, so both PCI slots have to be used.
It is advisable to make chamfers on both edge connectors. Also gold plated contact finish is good idea.
Board was tested with some wired and wireless network adapters.
