PCB Cartridge-CHIP-Special-FX2-PCB-CD-9EES (STD)_202X

English

Title: PCB Cartridge-CHIP-Special-FX2-PCB-CD-9EES (STD)_202X

Description:

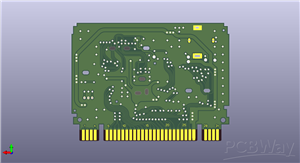

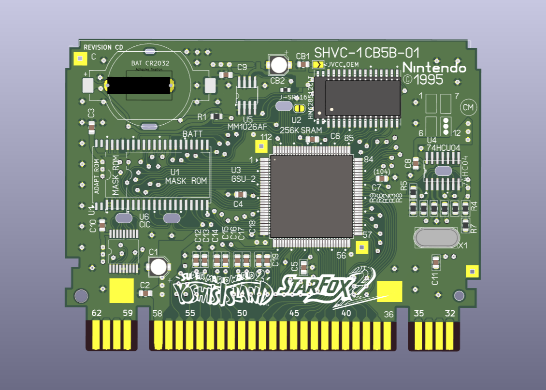

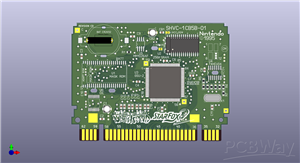

Replacement PCB for SNES/SFC cartridges using the Super FX 2 chip (GSU-2), compatible with games such as Star Fox 2, Yoshi's Island, Doom, Winter Gold and others.This board is based on the original Nintendo SHVC-1CB5B-01 design, faithfully reproduced with silkscreen artwork featuring Super Mario World 2: Yoshi's Island and Star Fox 2.

Specifications:

Compatible with original Super FX 2 (GSU-2) chip

Supports revisions C and D in a single PCB (STD — standardized)

Original CIC F411 (no multi-CIC)

MM1026AF IC

74HCU04 logic IC

19x ceramic capacitors 0603 (SMT)

1x CR2032 battery holder (SMT)

1x HM628512CLT SRAM TSOP-II-32 (SMT)

1x SOP-44 Adapt ROM socket (SMT)

1x HC-49U crystal 3-pin (THT)

Full edge connector pins for SNES/SFC cartridge slot

Includes:

Gerber files (ready for fabrication)

BOM (bill of materials)

Pick and place file (CSV)

Netlist (IPC)

BOOM LIST:

19X Capacitors 0603 (C3-C20, CB1, 104)19SMTC_0603_1608Metric

1X Electrolytic capacitor 10µF (CB2)1SMTC_Elec_4x5.8CI

1X 74HC04 SMTSOIC

1X Adapt ROM (Mask/SOP-44) (original Rom)

1X SMTSOP-44 HM628512CLT (SRAM)(512k or 256k)

1X CR2032 Battery SMTSMTU2032-LFPIC 12F6291THT

1X Crystal HC49-U1THT 3-pin vertical

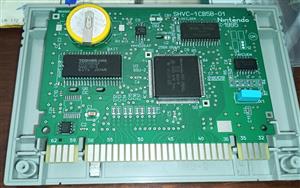

"Note: The assembled PCB photo shown is from the 9EA variant (with PIC 12F629). The 9EES variant does not include the PIC 12F629 and uses the original CIC F411 only. Check the 9EA variant here:PCB Cartridge-CHIP-Special-FX2-PCB-CD-9EA (STD)_202X.

https://www.pcbway.com/project/shareproject/PCB_Cartridge_CHIP_Special_FX2_PCB_CD_9EA_STD_202X_ccc45254.html

===================================Portugês BR====================================

Português

Título: PCB Cartridge-CHIP-Special-FX2-PCB-CD-9EES (STD)_202X

Descrição:

PCB substituta para cartuchos de SNES/SFC que utilizam o chip Super FX 2 (GSU-2), compatível com jogos como Star Fox 2, Yoshi's Island, Doom, Winter Gold e outros.Esta placa é baseada no design original Nintendo SHVC-1CB5B-01, fielmente reproduzida com serigrafia artística dos jogos Super Mario World 2: Yoshi's Island e Star Fox 2.

Especificações:

Compatível com o chip Super FX 2 (GSU-2) original

Suporte às revisões C e D em uma única PCB (STD — padronizada)

CIC F411 original (sem multi-CIC)

CI MM1026AF

CI 74HCU04

19x capacitores cerâmicos 0603 (SMT)

1x suporte de bateria CR2032 (SMT)

1x SRAM HM628512CLT TSOP-II-32 (SMT)

1x soquete Adapt ROM SOP-44 (SMT)

1x cristal HC-49U 3 pinos (THT)

Pinos completos do conector de borda para slot SNES/SFC

Inclui:

Arquivos Gerber (prontos para fabricação)

BOM (lista de componentes)

Arquivo Pick and Place (CSV)

Netlist (IPC)

Lista de Materiais & Componentes:

19X Capacitores 0603 (C3-C20, CB1, 104)19SMTC_0603_1608Metric

1X Capacitor eletrolítico 10µF (CB2)1SMTC_Elec_4x5.8CI

1X 74HC04 SMTSOIC

1X Adapt ROM (Máscara/SOP-44) (original Rom)

1X SMTSOP-44 HM628512CLT (SRAM)(512k or 256k)

1X Bateria CR2032 SMTSMTU2032-LFPIC 12F6291THT

1X Cristal HC49-U1THT 3 pinos vertical

"Nota: A foto da PCB montada exibida é da variante 9EA (com PIC 12F629). A variante 9EES não possui o PIC 12F629 e aceita apenas o CIC F411 original. Confira a variante 9EA aqui:PCB Cartridge-CHIP-Special-FX2-PCB-CD-9EA (STD)_202X.

https://www.pcbway.com/project/shareproject/PCB_Cartridge_CHIP_Special_FX2_PCB_CD_9EA_STD_202X_ccc45254.html
