KiCADKicad
|
Orpheus-Pico
The Orpheus Pico is a drop-in, open-source replacement to the Raspberry Pi Pico with a ton of new features built by teenagers at Hack Club for their educational programs.
Features
- The Orpheus Pico 2 features:
- identical footprint to the Raspberry Pi Pico
- an RP2040 microcontroller
- 32 addressable GPIO pins
- onboard active-high LED (IO25)
- onboard RGB LED (IO24)
- protected USB-C connection
- high-current power lines
- and more!

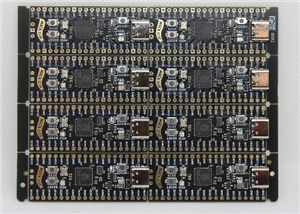

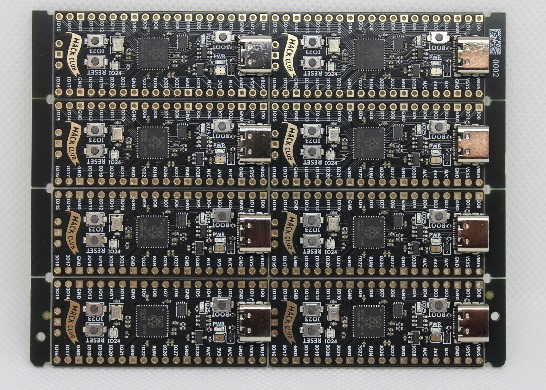

Orpheus-Pico
