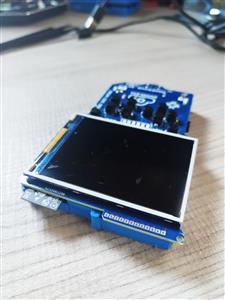

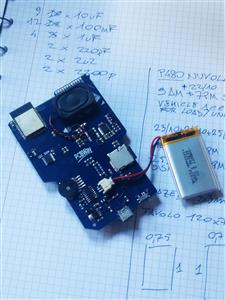

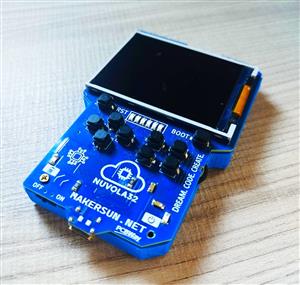

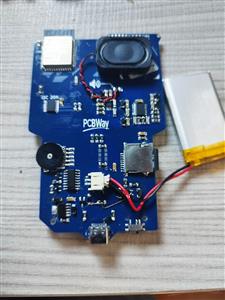

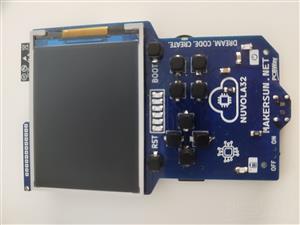

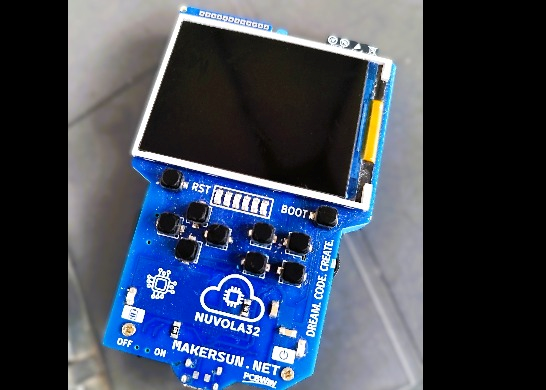

NUVOLA32 — ESP32-S3 Open Hardware Development Platform
NUVOLA32 is a powerful development board based on the **ESP32-S3**, designed for makers, hobbyists, and professional developers who want to rapidly prototype IoT devices, audio systems, gaming consoles, and display interfaces — all on a single compact board.
It combines a high-performance wireless microcontroller with a rich set of on-board peripherals: TFT display, audio DAC, speaker, SD card, I2C buttons, CharliePlexed LEDs, LiPo battery management, and a 12-pin expansion header — ready to use out of the box.
NUVOLA32 is open hardware. You are free to study, modify and manufacture derivative designs according to the applicable license terms.
