NUC front panel XLR key
Quite a while ago I bought a number of second hand Intel NUCs to create a Proxmox cluster. It sat as a stack on my desk and it was annoying to turn on and off and was a complete mess of spaghetti wires.
To remedy I bought a 10 inch rack from GeeekPi and so began my journey to make it more usable and neater that the mess on my desk.

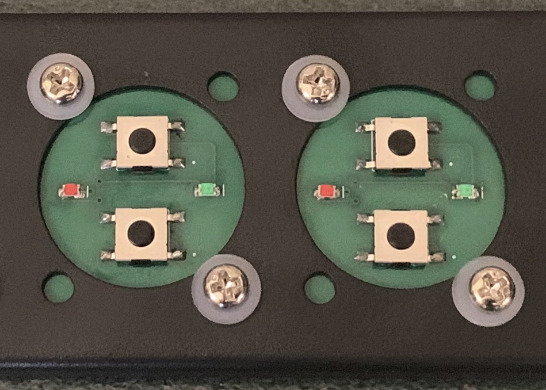

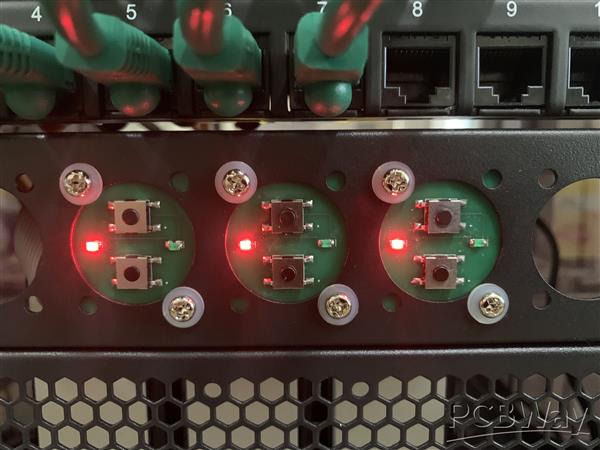

One of the things I really wanted was to have a front panel so I could stack the NUCs neatly in the rack and not have to move them about to turn them off and on.
https://8bitshardway.blogspot.com/2025/06/front-panel-for-intel-nucs-for-10-inch.html
NUC front panel XLR key
