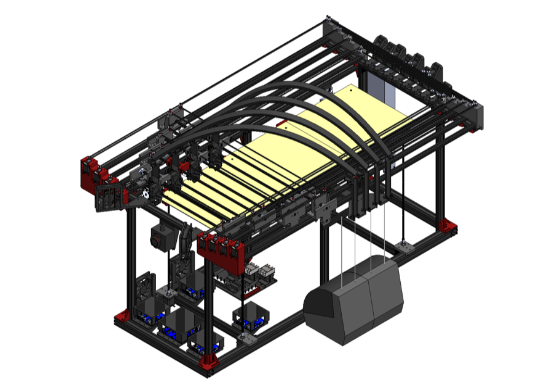

Multi-head Simultaneous Independent 3D Printer - Revision 1
Copyright 2025 Bowler LLC.
For more information, software, a full bill of materials, and build instructions, see https://bowler.llc/projects/.
USPTO Patent Pending.

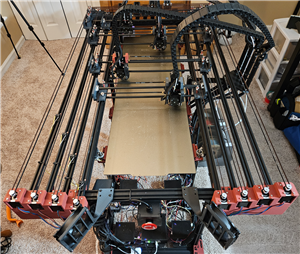

This multi-head 3D printer utilizes multiple simultaneous and independent heads to allow the operator to print multiple copies of a part, print in multiple colors (at once and separately), print in multiple materials (at once and separately), and, in future versions, break up large prints into regions that are printed simultaneously. The design features a 1230mm x 410mm x 450mm print bed and utilizes Duet/RepRap to open up the possibilities for what can be printed.
Use the files below to quote printing. PLA is fine for all "P" parts. The "PS" parts have very thin walls, these parts may require other services/consultation. Increase infill for structural components. (Note, P28 should be replaced with just an M4 nut since embedding it is not allowed)
See our YouTube channel for updates as they come out! (https://www.youtube.com/@bowlerllc)
CAD-Custom parts and enclosures
Emergency Stop Button Mount - Qty 1
P00_Emergency_Stop_Button_Mount.stl

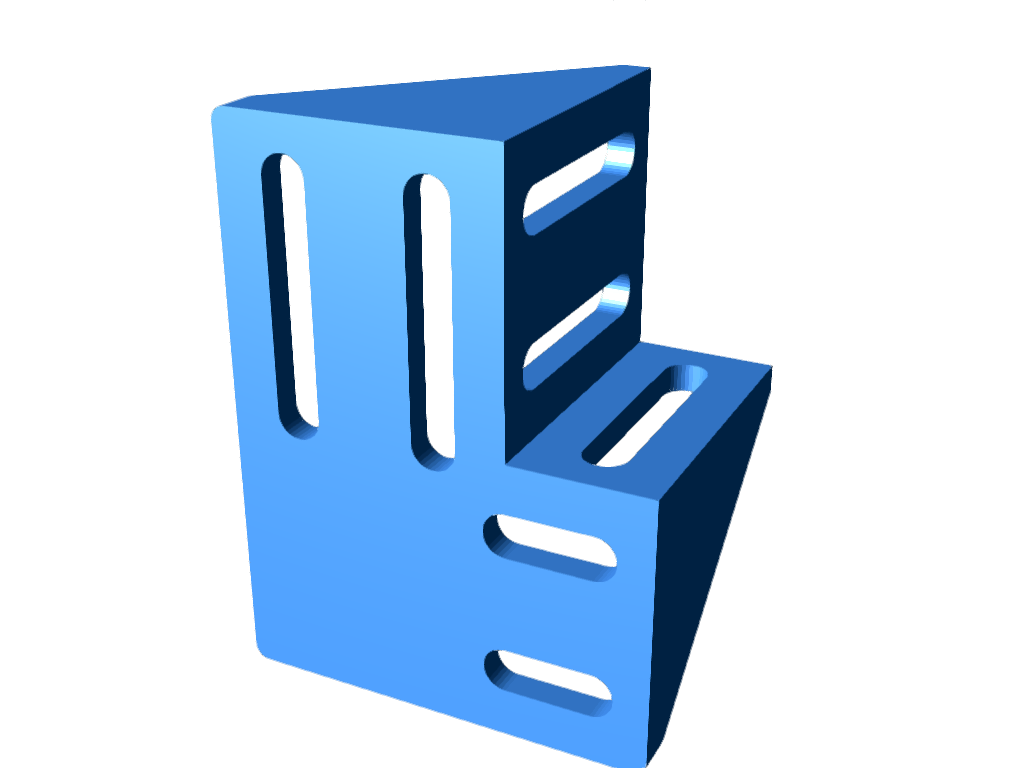

Corner Extrusion Bracket 4040 - Qty 2
P01_Corner_Extrusion_Bracket_4040.stl
Corner Extrusion Bracket 4040 Mirrored - Qty 2
P02_Corner_Extrusion_Bracket_4040_Mirrored.stl
Corner Extrusion Bracket 4020 - Qty 2
P03_Corner_Extrusion_Bracket_4020.stl
2020 To 4020 Bracket - Qty 5
P04_2020_To_4020_Bracket.stl
Wire Brace Mount - Qty 1
P05_Wire_Brace_Mount.STL
Wire Collar Mount Plate - Qty 1
P06_Wire_Collar_Mount_Plate.stl
Wire Support Pivot Column - Qty 2
P07_Wire_Support_Pivot_Column.stl
Wire Support Pivot Column Mirrored - Qty 2
P08_Wire_Support_Pivot_Column_Mirrored.stl
Wire Pivot Nut - Qty 8
P09_Wire_Pivot_Nut.stl
Wire Pivot - Qty 6
P10_Wire_Pivot.stl
Wire Pivot Mirror - Qty 2
P11_Wire_Pivot_Mirror.stl
Nozzle Catcher Mount - Qty 1
P12_Nozzle_Catcher_Mount.stl
Nozzle Catcher Plate - Qty 1
P13_Nozzle_Catcher_Plate.stl
Rear Post Mount - Qty 1
P14_Rear_Post_Mount.stl
Rear Post Mount Mirrored - Qty 1
P15_Rear_Post_Mount_Mirrored.stl
2020 Extrusion Bracket - Qty 16
P16_2020_Extrusion_Bracket.stl
Left Motor Mount - Qty 1
P17_Left_Motor_Mount.stl
Right Motor Mount - Qty 1
P18_Right_Motor_Mount.stl
Z Stepper Plate - Qty 2
P19_Z_Stepper_Plate.stl
Z Stepper Plate Mirror - Qty 2
P20_Z_Stepper_Plate_Mirror.stl
Pillow Block Mount Plate - Qty 4
P21_Pillow_Block_Mount_Plate.stl
Bed Support Bar Clasp - Qty 4
P22_Bed_Support_Bar_Clasp.stl
Bed Support Bar Plate - Qty 4
P23_Bed_Support_Bar_Plate.stl
Bed T Support Plate - Qty 4
P24_Bed_T_Support_Plate.stl
Bed T Support Plate Top - Qty 4
P25_Bed_T_Support_Plate_Top.stl
Bed Right Angle Plate - Qty 2
P26_Bed_Right_Angle_Plate.stl
Bed Right Angle Plate Mirror - Qty 2
P27_Bed_Right_Angle_Plate_Mirror.stl
Z Drive Bed Plate - Qty 2
P29_Z_Drive_Bed_Plate.stl
Z Drive Bed Plate Mirror - Qty 2
P30_Z_Drive_Bed_Plate_Mirror.stl
Limit Switch Attachment Mount - Qty 4
P31_Limit_Switch_Attachment_Mount.stl
Main Board Bottom Cover - Qty 1
P32_Main_Board_Bottom_Cover.stl
Main Board Support Bracket - Qty 1
P33_Main_Board_Support_Bracket.stl
Main Board Top Cover - Qty 1
P34_Main_Board_Top_Cover.stl
Expansion Board Bottom Cover - Qty 4
P35_Expansion_Board_Bottom_Cover.stl
Expansion Board Support Bracket - Qty 4
P36_Expansion_Board_Support_Bracket.stl
Expansion Board Top Cover - Qty 4
P37_Expansion_Board_Top_Cover.stl
Heatbed Electronics Support Plate - Qty 1
P38_Heatbed_Electronics_Support_Plate.stl
Axis Motor Fan Mount - Qty 1
P39_Axis_Motor_Fan_Mount.stl
Axis Motor Fan Mount Mirror - Qty 1
P40_Axis_Motor_Fan_Mount_Mirror.stl
Electronics Cooling Fan Mount - Qty 2
P41_Electronics_Cooling_Fan_Mount.stl
Slider Mount - Qty 10
P42_Slider_Mount.stl
Print Head Wire Pivot - Qty 4
P43_Print_Head_Wire_Pivot.stl
Hotend Adapter - Qty 4
P44_Hotend_Adapter.stl
Extruder Mounting Plate - Qty 4
P45_Extruder_Mounting_Plate.stl
Extruder Assembly Plate - Qty 4
P46_Extruder_Assembly_Plate.stl
Flow Duct - Qty 4
P47_Flow_Duct.stl
Support Bridge Medium - Qty 2
P48_Support_Bridge_Medium.stl
Support Bridge Large - Qty 2
P49_Support_Bridge_Large.stl
Support Bridge XLarge - Qty 2
P50_Support_Bridge_XLarge.stl
Belt Attachement Small - Qty 1
P51_Belt_Attachment_Small.stl
Belt Attachement L XL - Qty 2
P52_Belt_Attachment_L_XL.STL
Rear Tension Post 0 - Qty 1
P53_Rear_Tension_Post_0.stl
Rear Tension Post 1 - Qty 1
P54_Rear_Tension_Post_1.stl
Rear Tension Post 2 - Qty 1
P55_Rear_Tension_Post_2.stl
Rear Tension Post 3 - Qty 1
P56_Rear_Tension_Post_3.stl
Rear Tension Post 4 - Qty 1
P57_Rear_Tension_Post_4.stl
Rear Tension Post 5 - Qty 1
P58_Rear_Tension_Post_5.stl
Rear Tension Post 6 - Qty 1
P59_Rear_Tension_Post_6.stl
Rear Tension Post 7 - Qty 1
P60_Rear_Tension_Post_7.stl
Tension Pull Arm - Qty 8
P61_Tension_Pull_Arm.stl
Belt Attachement Medium - Qty 1
P62_Belt_Attachment_Medium.STL
27.25 - Qty 2
PS00_27.25.STL
1.75 - Qty 8
PS01_1.75.STL
3.75 - Qty 2
PS02_3.75.STL
8.25 - Qty 2
PS03_8.25.STL
10.25 - Qty 6
PS04_10.25.STL
19.75 - Qty 2
PS05_19.75.STL
11.25 - Qty 2
PS06_11.25.STL
12.75 - Qty 2
PS07_12.75.STL
4.25 - Qty 2
PS08_4.25.STL
15.75 - Qty 2
PS09_15.75.STL
7.25 - Qty 2
PS10_7.25.STL
3 - Qty 4
PS11_3.stl
2.5 - Qty 2
PS12_2.5.stl
28.5 - Qty 2
PS13_28.5.stl
7 - Qty 2
PS14_7.stl
2 - Qty 6
PS15_2.stl
10.5 - Qty 6
PS16_10.5.stl
10 - Qty 2
PS17_10.stl
18.5 - Qty 2
PS18_18.5.STL
11.5 - Qty 2
PS19_11.5.stl
14.5 - Qty 2
PS20_14.5.stl
6 - Qty 2
PS21_6.stl
