Tools, APP Software Used etc.
|
KiCad 9.0 |
Description

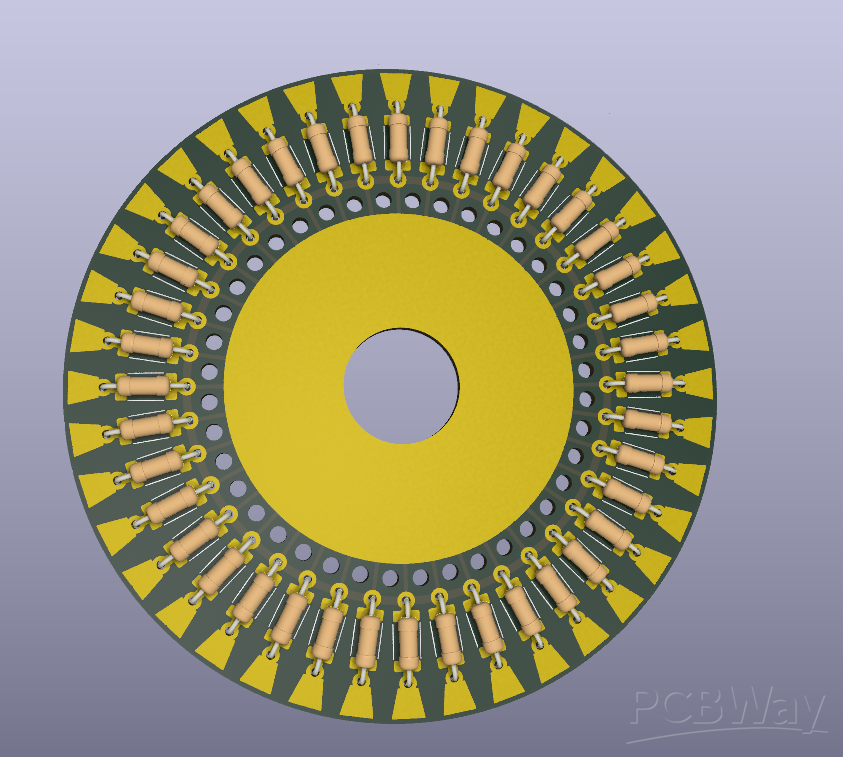

Multi Resistor substitution wheel
PCB design for a Variable Multiple Resistor selection Wheel, Based on Tandy resistor wheel https://www.youtube.com/watch?v=ol-B5CQW3zo
Space for 40 upto 1W Resistors, SMD or THT or a combination of both. A 2.2mm hole is there for adding a ball detent for that clickey feel. Side is about 80 mm diameter so size your enclosure appropritely. Source Files are included so modify as you wish.
Code
PCB source Files for Kicad9
Resistance_wheel_kicad_9_source.zip
Mar 22,2026
18 views
Multi Resistor substitution wheel
PCB design for a Variable Multiple Resistor selection Wheel, Based on Tandy resistor wheel https://www.youtube.com/watch?v=ol-B5CQW3zo
18
0
1
Published: Mar 22,2026
Standard PCB
Download Gerber file 1
Other files for Assembly
PCBWay Donate 10% cost To Author
Only PCB
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
