Description
Minimum system for ESP-NOW Device
Minimum system with ESP-32 can be implemented with ESP-NOW protocol. You can use this as keychain for anti-lost wereable device.With RGB and buzzer it can be indicator while your device lost. Range of between device and keychain adjustable from up to 10 meter. ESP-NOW protocol same principle with BLE, which makes it superior ESP-NOW no need device for additional device for make it works. Just with 2 ESP you can use ESP-NOW.

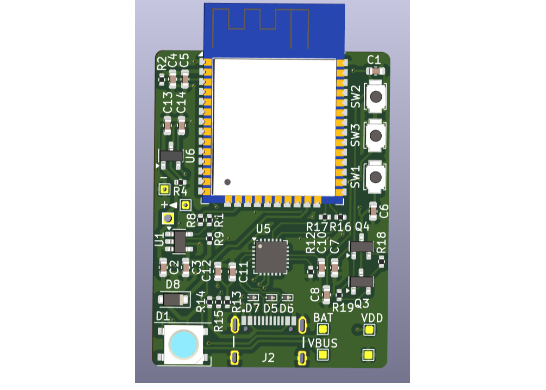

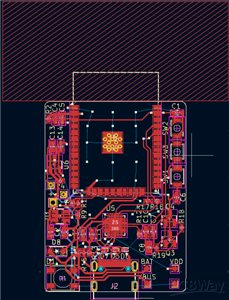

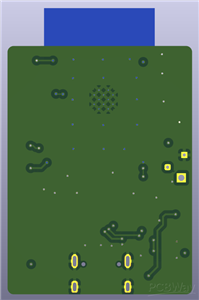

Schematic and Layout
receiver_esp_now_0.2.kicad_sch
receiver_esp_now_0.2.kicad_pcb
Feb 16,2025
379 views
Minimum system for ESP-NOW Device
This device can be implemented ESP-NOW with low system. and you can make anti-lost alert device with this board using ESP-NOW protocol.
379
0
0
Published: Feb 16,2025
Standard PCB
Download Gerber file 1
PCBWay Donate 10% cost To Author
Only PCB
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
