Components

	TE Connectivity AMP Connectors 5767061-1 TE Connectivity	x 1
	2.54-1*19 (2.54 Pitch Pin Header 1x19)	x 2
	2.54-1*5 (2.54 Pitch Pin Header 1x5)	x 1

Tools, APP Software Used etc.

KiCad 9.0

Description

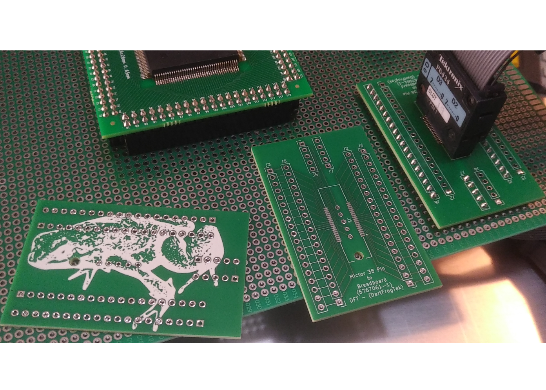

Mictor 38Pin Logic Analyzer Probe Breakout

A breakout board for Logic Analyzers that use the Mictor 38 Pin connector. Pin Headers use Prototype PCB / Breadboard pin spacing (2.54 mm Pitch).

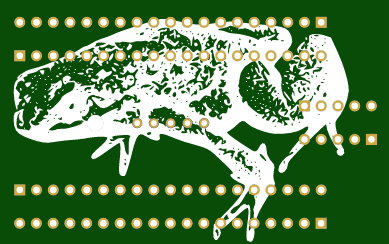

I would place male pins on bottom side in J2/J5/J4 and solder from top. You can either leave J3/J6/J7 empty or you can add male pins or female sockets to the top if desired. J2/J6 are connected. J4/J7 are connected. J5/J3 are connected.

Female Mictor 38 Pin Connector: TE Connectivity AMP Connectors 5767061-1

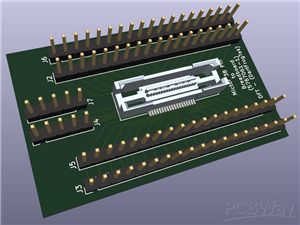

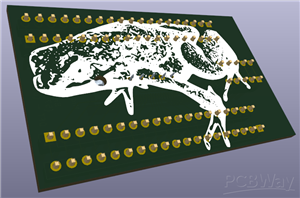

Schematic and Layout

DFT - (DartFrogTek) Mictor 38 Pin to Breadboard

https://github.com/DartFrogTek/Mictor38Pin_2_Breadboard

Download Gerbers Download BOM(Bill of materials)

May 10,2025

869 views

Mictor 38Pin Logic Analyzer Probe Breakout

2 Layers PCB 59 x 37 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen

A breakout board for Logic Analyzers that use the Mictor 38 Pin connector. Uses prototype pcb pin spacing.

869

Published: May 10,2025
