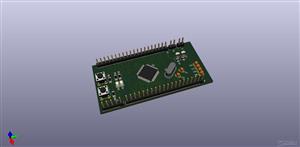

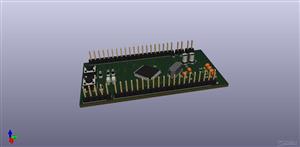

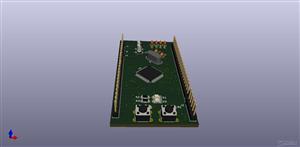

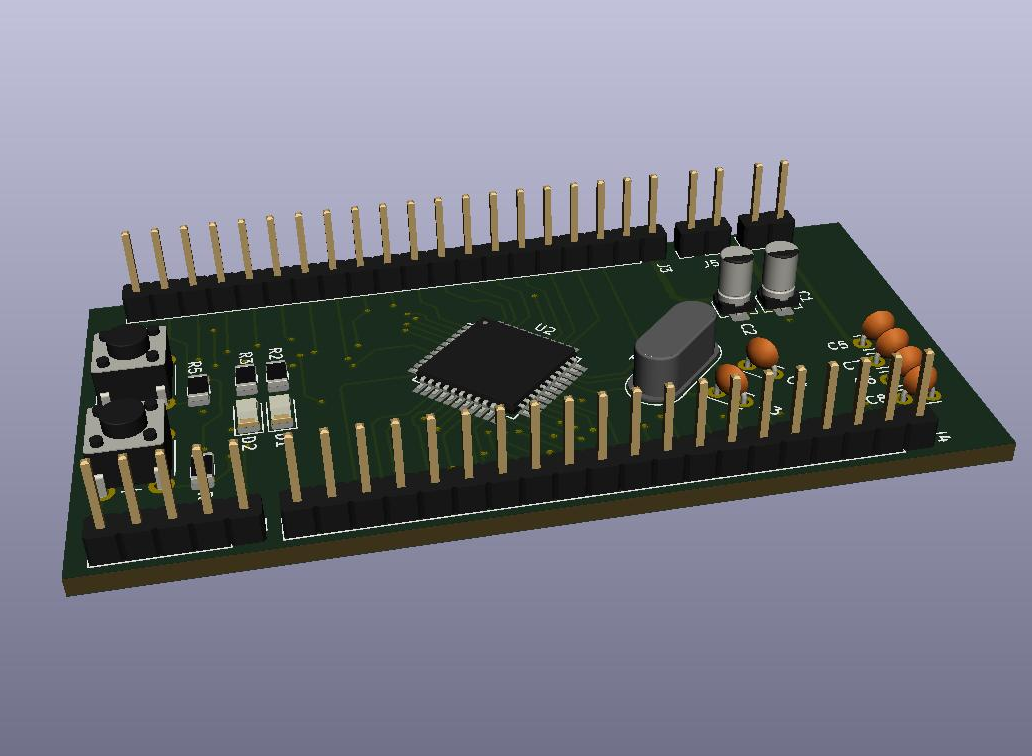

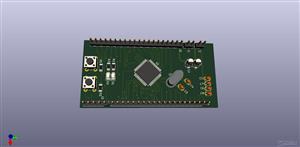

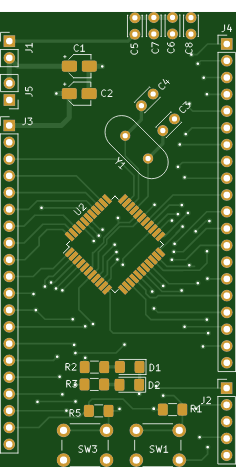

This design is for PIC 44 pin SMD Controller. I have designed this board as initial version which will be enhanced later once we use it in the project.

This kind of boards are very useful for prototyping projects.We are planning to add some essential peripheral IC in the board. I would like to hear from you which are useful peripheral IC which can be include.

Here is the complete Component list

1 cl - CPl_Small : Capacitor_SMD:CP_Elec_3x5.4

2 c2 - CPl_Small : Capacitor_SMD:CP_Elec_3x5.4

3 c3 - C : Capacitor_THT:C_Disc_D3.0mm_W2.0mm_P2.50mm

4 c4 - C : Capacitor_THT:C_Disc_D3.0mm_W2.0mm_P2.50mm

5 cs - C : Capacitor_SMD:C_1206_3216Metric_Padl.42x1.75mm_HandSolder

6 cé - C : Capacitor_SMD:C_1206_3216Metric_Padl.42x1.75mm_HandSolder

7 c7 - C : Capacitor_SMD:C_1206_3216Metric_Padl.42x1.75mm_HandSolder

8 cs - C : Capacitor_SMD:C_1206_3216Metric_Padl.42x1.75mm_HandSolder

9 Dl - LED : LED _SMD:LED 1206_321é￠Metric_Padl.42x1.7S5mm_HandSolder

10 D2 - LED : LED _SMD:LED 120€_321éMetric_Padl.42x1.7S5mm_HandSolder

ll dl - Conn_01x02 : Connector_PinHeader_2.54mm:PinHeader_1x02_P2.54mm_Vertical

12 J2 - Conn_01x05 : Connector_PinHeader_2.54mm:PinHeader_1x05_P2.54mm_Vertical

13 J3 - Conn_01x20 : Connector_PinHeader_2.54mm:PinHeader_1lx20_P2.54mm_Vertical

14 J4 - Conn_01x20 : Connector_PinHeader_2.54mm: PinHeader_1x20_P2.54mm_Vertical

15 Js - Conn_01x02 : Connector_PinHeader_2.54mm:PinHeader_1x02_P2.54mm_Vertical

16 Rl - R : Resistor_SMD:R_1206_3216Metric_Padl.42x1.7Smm_HandSolder

17 R2 - R : Resistor_SMD:R_1206_3216Metric_Padl.42x1.75mm_HandSolder

18 R3 - R : Resistor_SMD:R_120€_321￠Metric_Padl.42x1.75mm_HandSolder

15 RS - R : Resistor_SMD:R_1206_3216Metric_Padl.42x1.75mm_HandSolder

20 swl - SW_Push : Button_Switch_THT:SW_PUSH_émm_HSmm

2l sWw3 - SW_Push : Button_Switch_THT:SW_PUSH_émm_HSmm

22 Ul - 1M1117-5.0 : Package_TO_SOT_SMD:SOT-223-3_TabPin2

23 U2 - PIC16F877A-IPT : Package_QFP:TOQFP-44_10xl0mm_P0.Smm

24 Yl - Crystal : Crystal:Crystal_HC49-4H Vertical
