MicroFC SiPM Carrier Board
This is the affiliate page for the MicroFC SiPM Carrier Board.
NOTE: THIS IS A 2 LAYER BOARD!
You can easily order the PCB directly through PCBWay here — it helps support the project a little, and doesn’t cost you anything extra.
The main open-source project with all hardware, firmware, and documentation is hosted on GitHub.

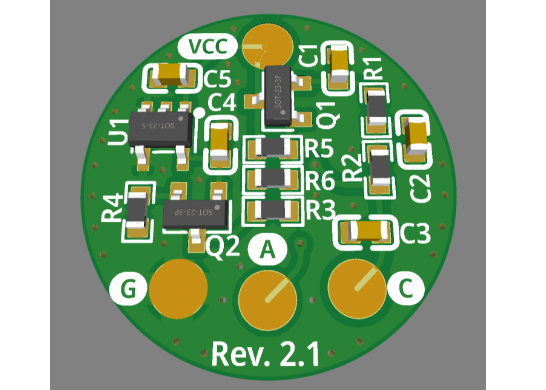

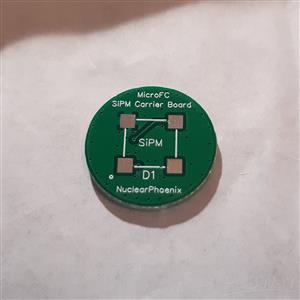

Carrier board for a 6 mm C-Series MICROFC-60035-SMT silicon photomultiplier by onsemi designed specifically to work with the Open Gamma Detector, but can be used with any other system. With additional (optional) circuitry for automatic SiPM temperature gain compensation.

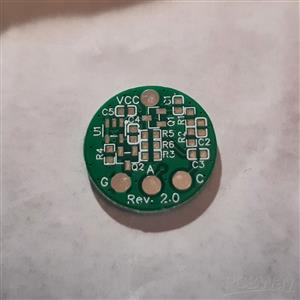

PCB size is 18 x 18 mm. The solder pads for the SiPM are slightly bigger than they need to so that you can easily hand-solder everything!
MicroFC SiPM Carrier Board
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
PCBWay is not responsible
for issues caused by unsuitable parameter selections.
For more important ordering information, please refer to
