Oliver Higa
CANADA • + Follow
Components
|

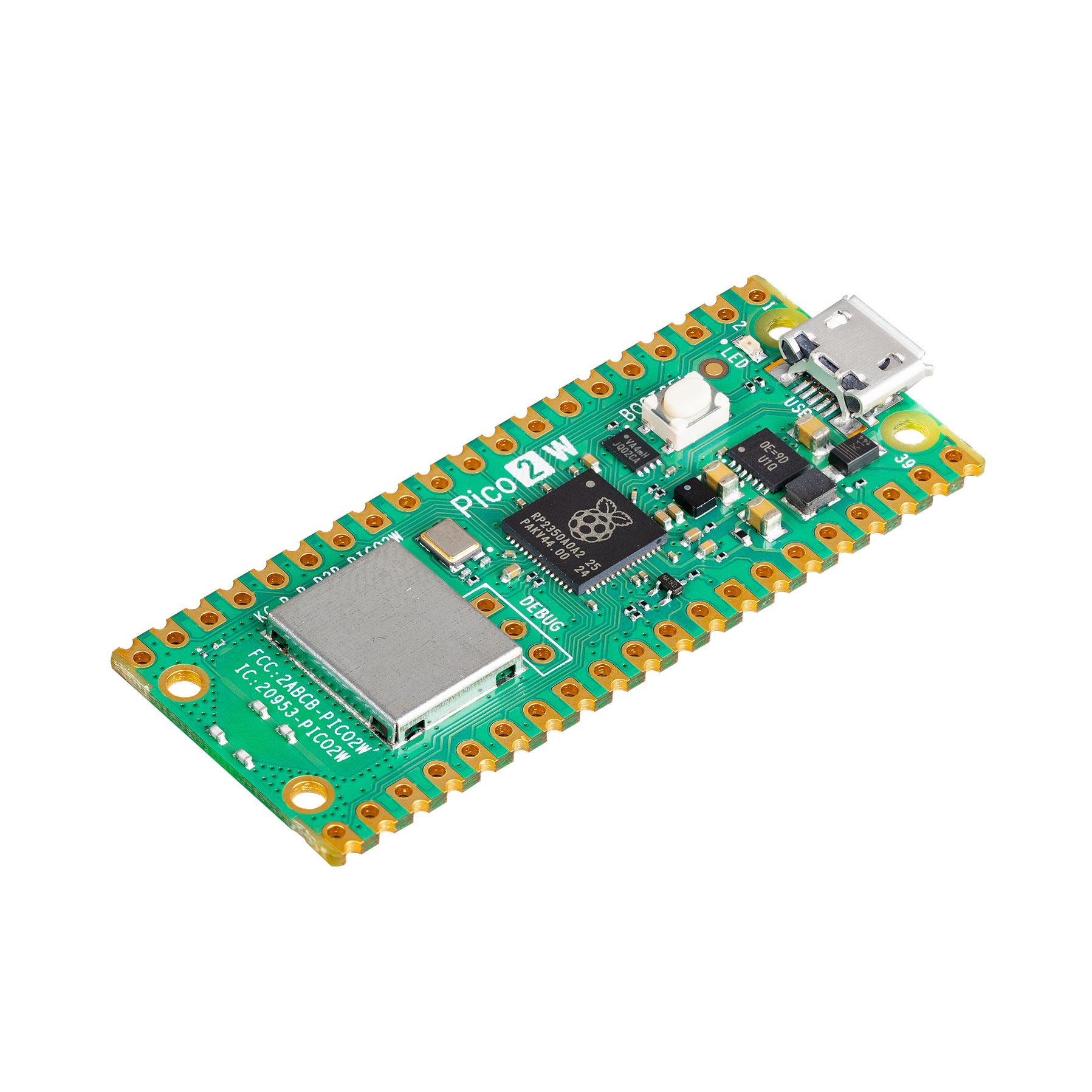

SC1633Raspberry Pi
|
x 1 | |
|
|
1N4148WSDiotec Semiconductor『 』SOD-323
|
x 89 |
Tools, APP Software Used etc.
|
KiCad 9.0 |
Description

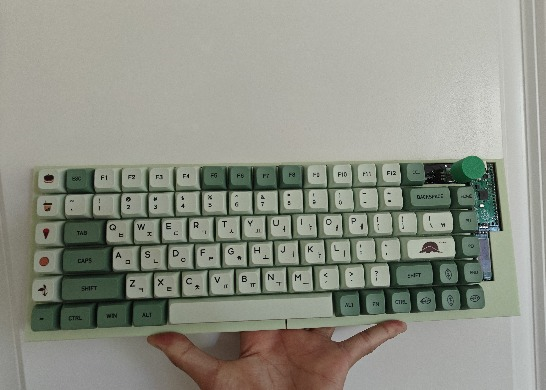

Maya75 Keyboard
This is a custom 75% keyboard. Code: https://github.com/Oliver2402/Maya75 Case: https://makerworld.com/en/models/1643274-maya75#profileId-17
It is qmk compatible which is seen in the code. (It requires qmk, or zmk, etc.)
Jul 27,2025
370 views
Maya75 Keyboard

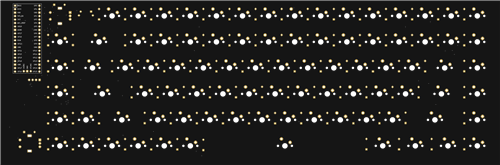

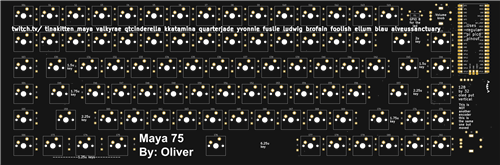

2 Layers PCB 121 x 365.1 mm FR-4, 1.6 mm, 1, HASL lead free, Black Solder Mask, White silkscreen
This is a custom 75% keyboard. It is fully open source (with info in the desc) and it can be made to look pretty much however you like.
370
1
0
Published: Jul 27,2025
Standard PCB
PCBWay Donate 10% cost To Author
Only PCB
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
