Description
Magic-Blu-Delay Electric Guitar PT2399 Delay Effect PCB

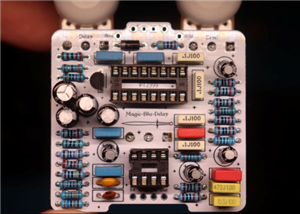

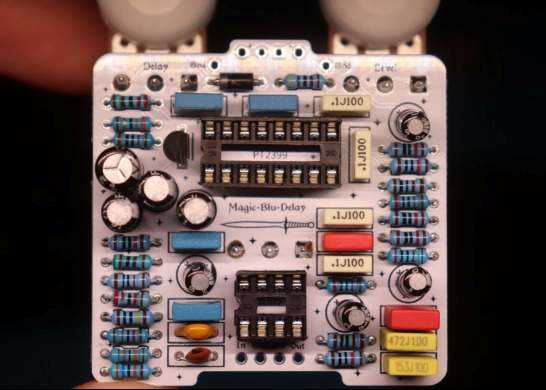

Magic-Blu-Delay (not blue) PCB mainboard

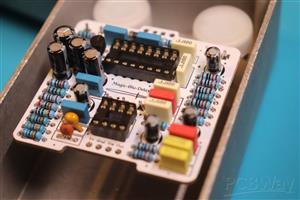

- Fits in 125B aluminum enclosure.
- 9V DC (no battery, but it is pointless anyway due to the power consumption)
- VOLUME/DELAY/REPEAT controls (3 potentiometers)
- Easy assembly, no SMD components

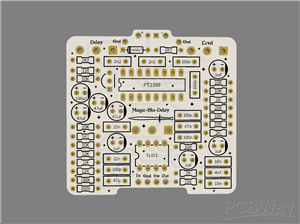

- Included components list on the PCB silkscreen
- Included drill template

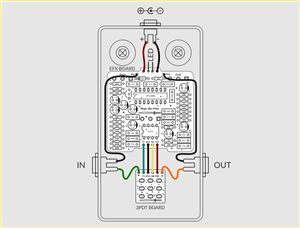

- Included wiring layout
- Panel project (check my other PCB designs )

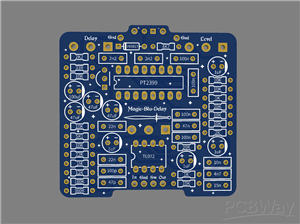

- White PCB for Gandalf lovers, Black for Saruman : D
- The project has been assembled, tested, verified and it works
- There are a lot of parts, but recommend it as a project for beginners, anyway.
Now take your soldering iron and get to work! May the good spirit be with you!
