KiCADKicad
|

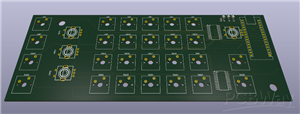

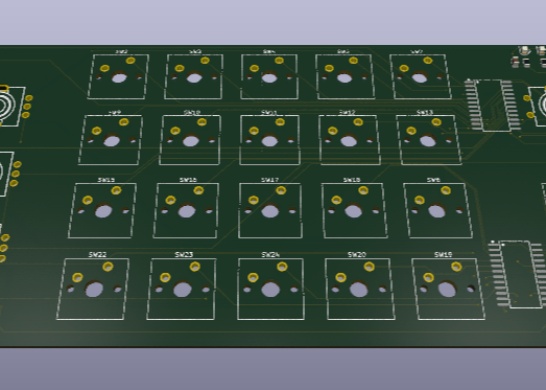

Macropad with Keys and Rotary Encoders

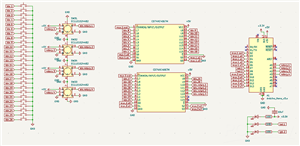

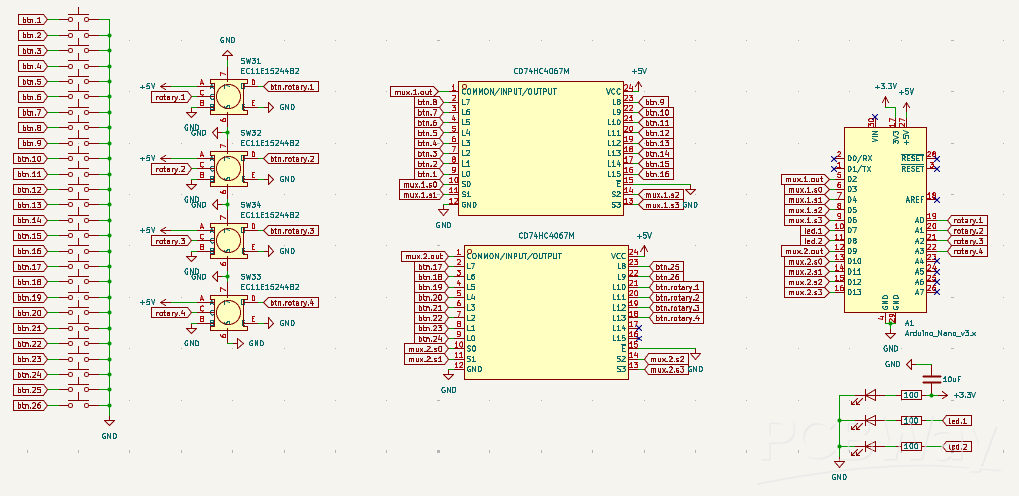

A simple macropad using an Arduino nano (or another mcu in a compatible footprint) and two multiplexers.
It has 26 keys and 4 potentiometers.
This project is untested and may not work!
