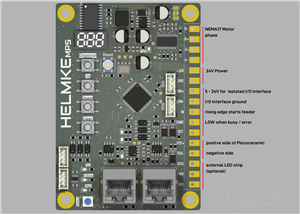

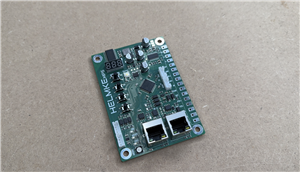

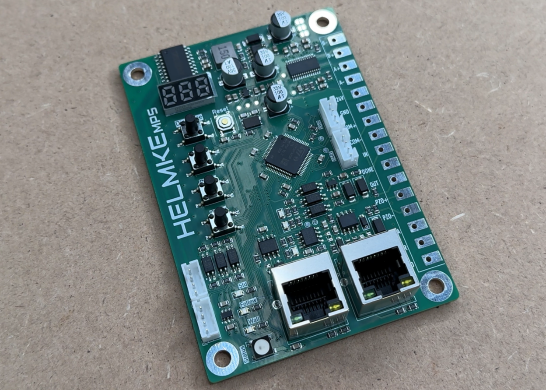

MPS DrumFeeder Mainboard

4 Layers PCB 70 x 100 mm FR-4, 1.6 mm, 1, HASL with lead, Green Solder Mask, White silkscreen

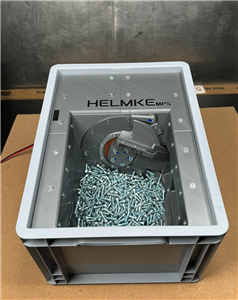

PCB controlling the MPS Feeder.
1901
4
3
Published: Mar 20,2026
