Tools, APP Software Used etc.
|
KiCad 9.0 |
Description
LQFP32 Breakout Board
LQFP32 Breakout Board for easy breadboarding prototype
LQFP-32 7x7mm Pitch 0.8mm
C = 0805
Pin Header = 2.54mm
Crystal/XTAL = HC-49
Board Dimension = 21.5 x 42mm(0.85 x 1.65 inches)

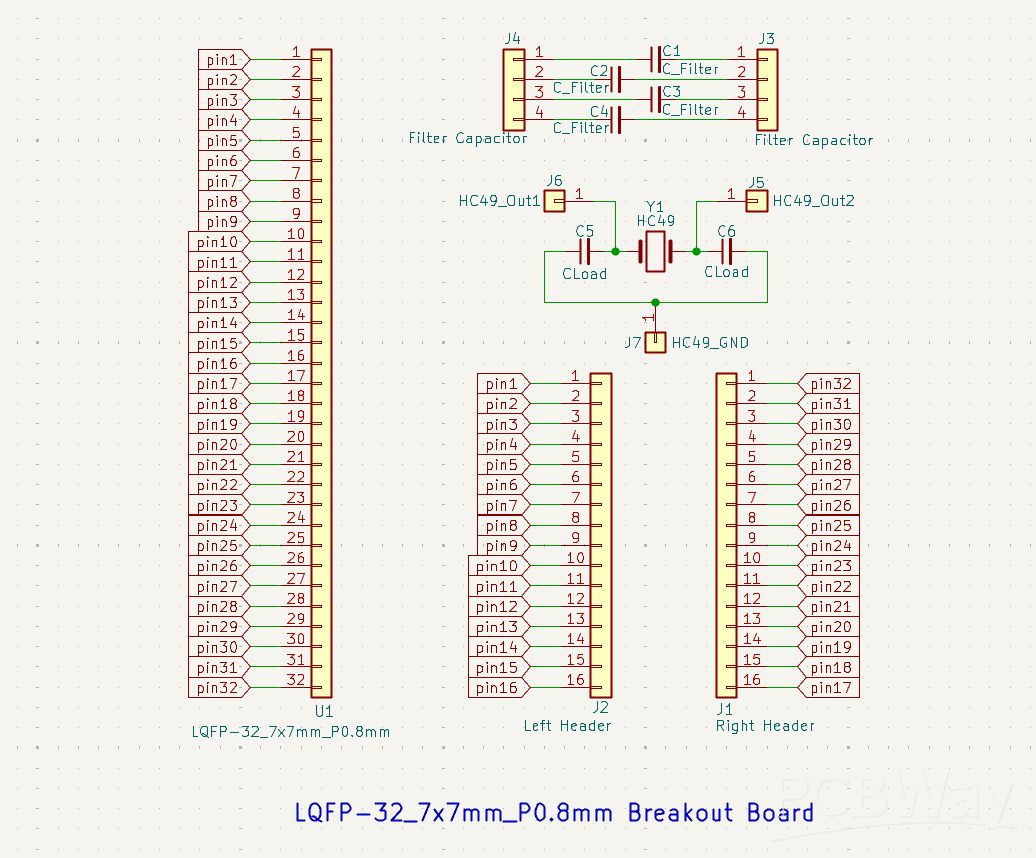

Schematic

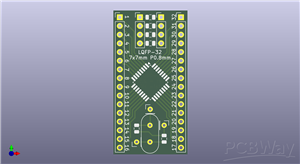

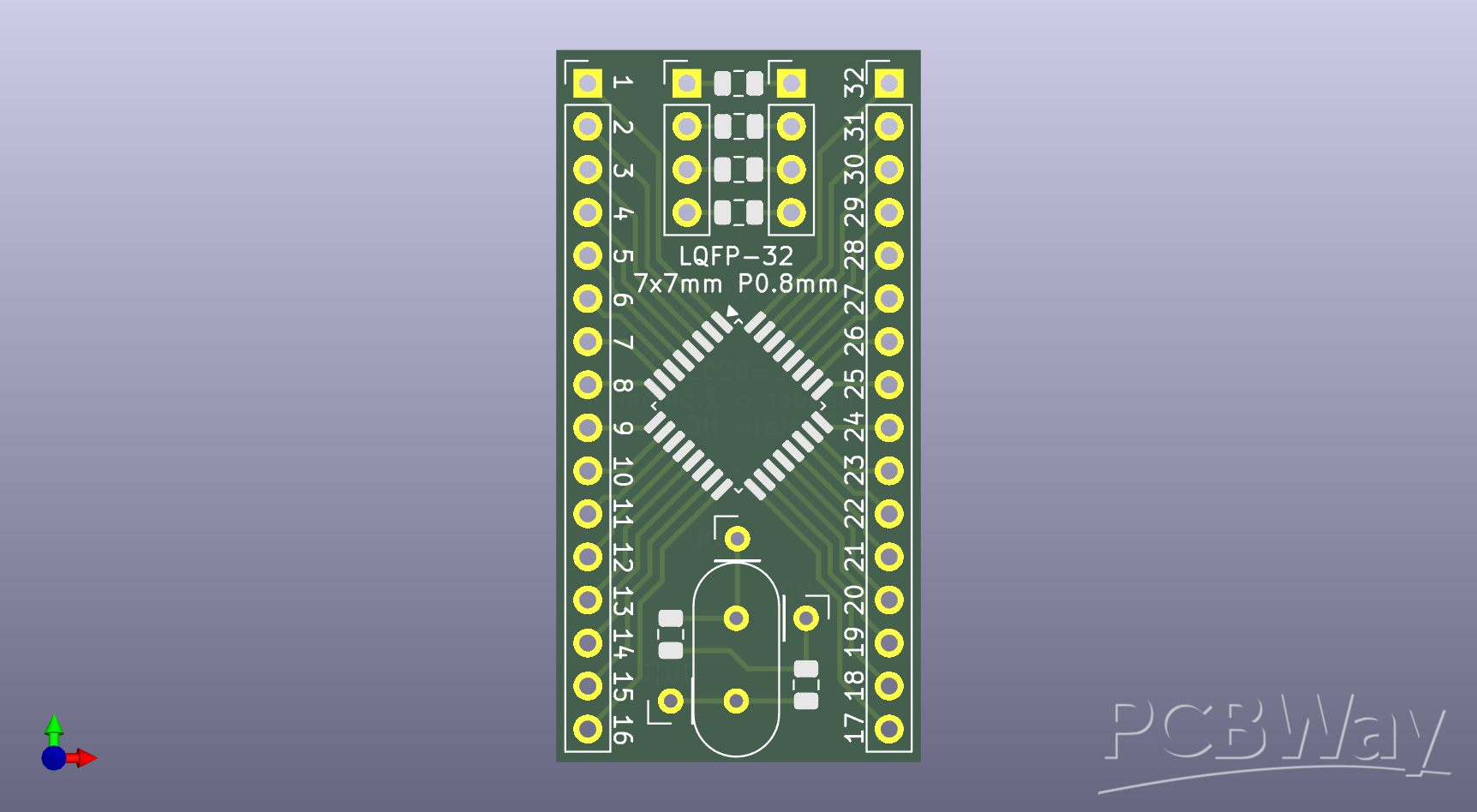

TOP Side

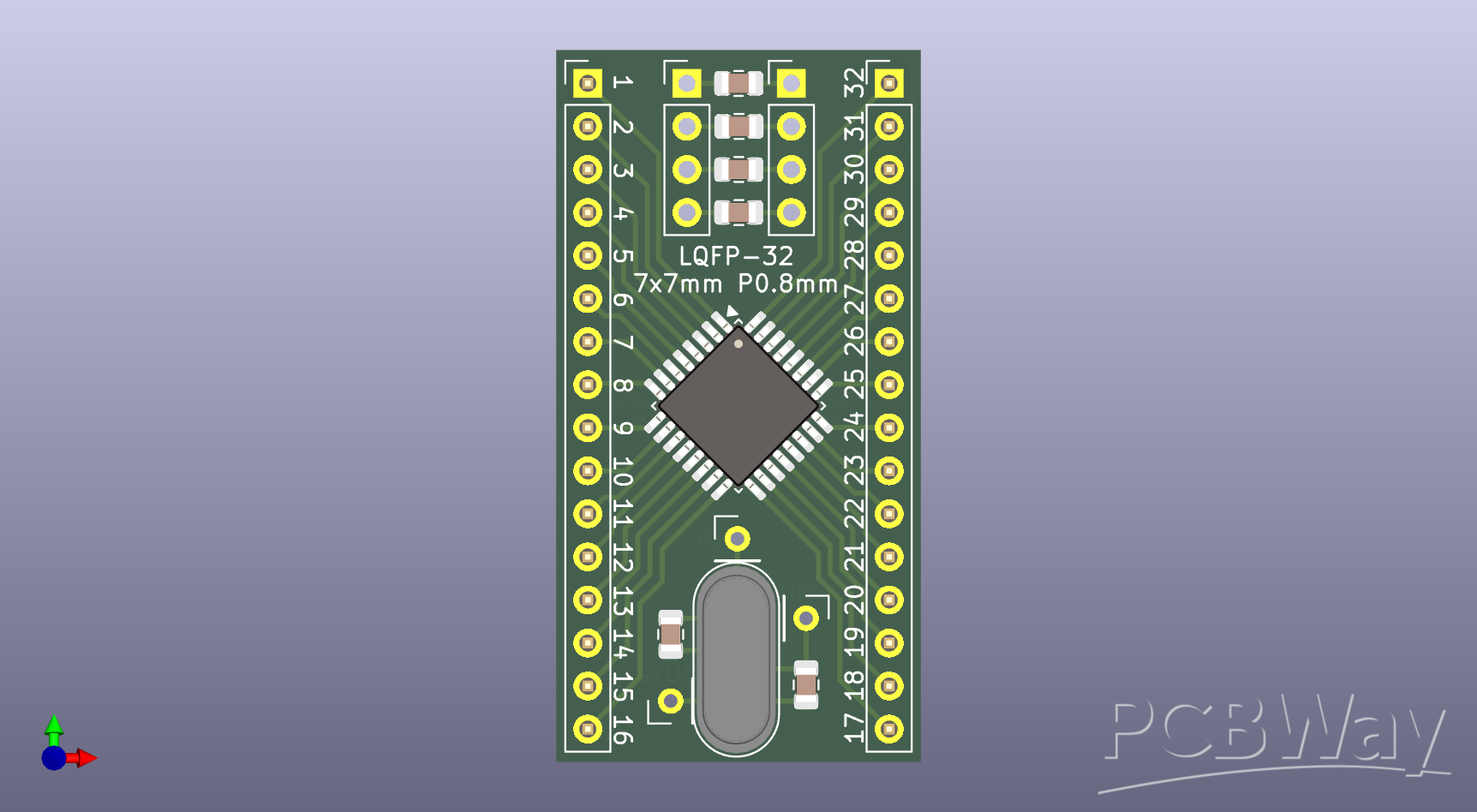

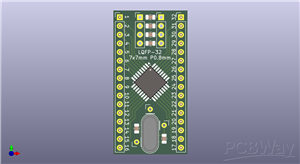

Assembly :

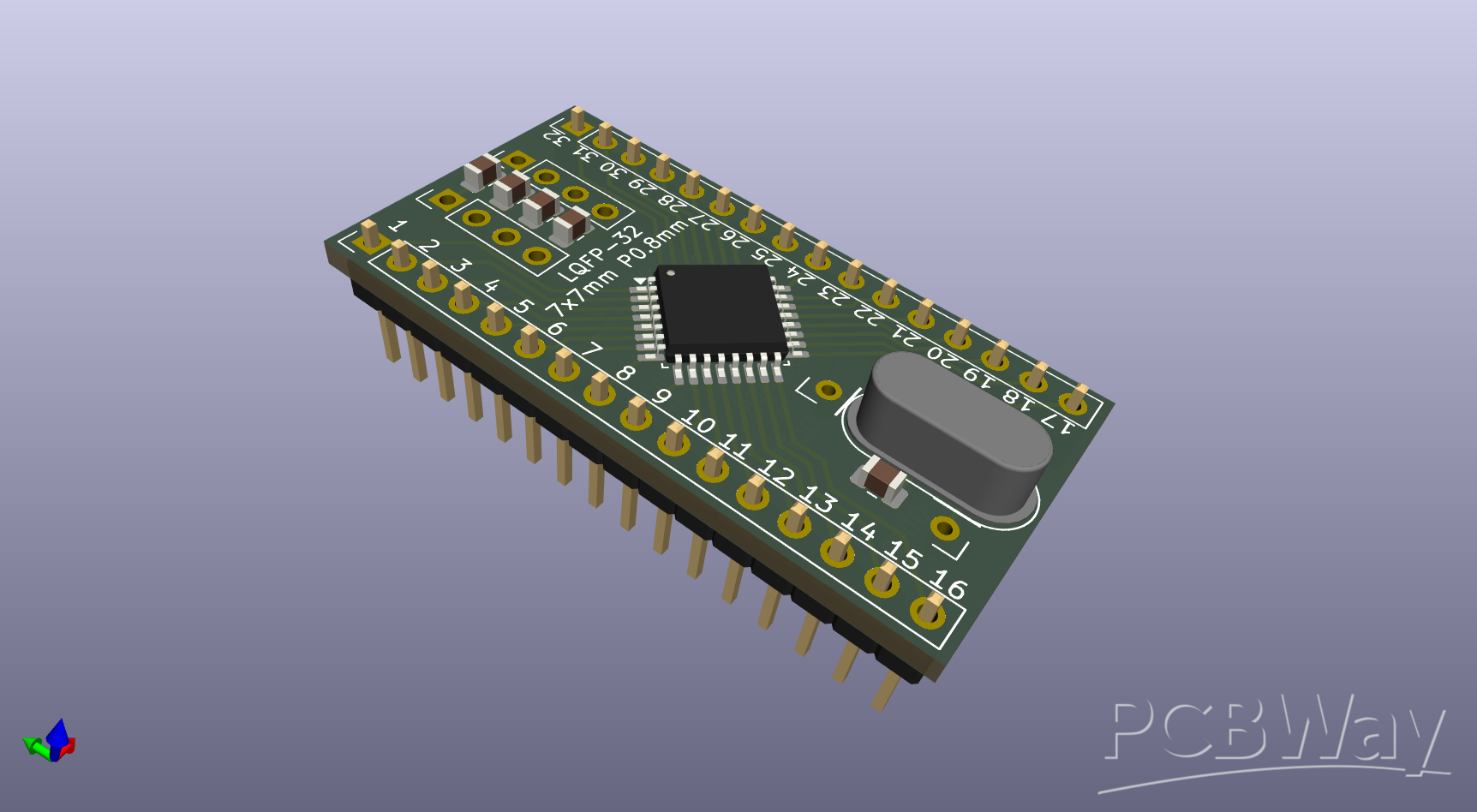

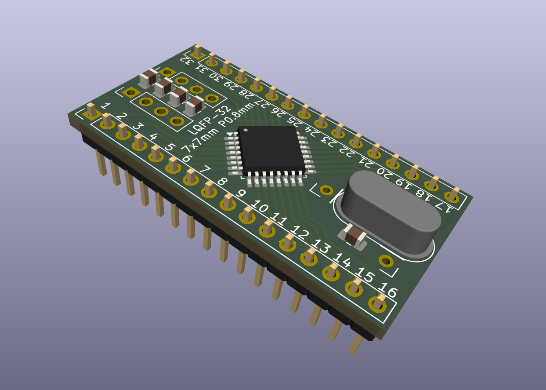

3D Perspective
Schematic and Layout
Schematic
Kicad 9 Design Files
LQFP32 Kicad Design Files.rar
Jul 17,2025
247 views
LQFP32 Breakout Board
LQFP32 Breakout Board for easy breadboarding prototype
247
0
0
Published: Jul 17,2025
Standard PCB
Download Gerber file 2
PCBWay Donate 10% cost To Author
Only PCB
*PCBWay community is a sharing platform. We are not responsible for any design issues and parameter issues (board thickness, surface finish, etc.) you choose.
Under the
Attribution-ShareAlike (CC BY-SA)
License.
