Edge Connector 3,96mm Serie 805 - 36 Pin |
x 1 | |
|
|
SS12D00G3 Switch |
x 2 | |
|
|
RCA Phono 3 Pin |
x 2 |

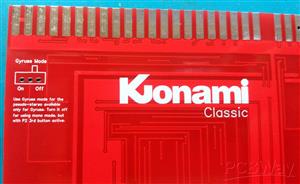

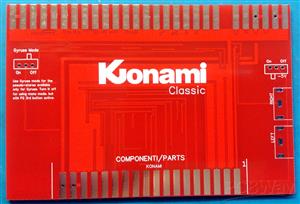

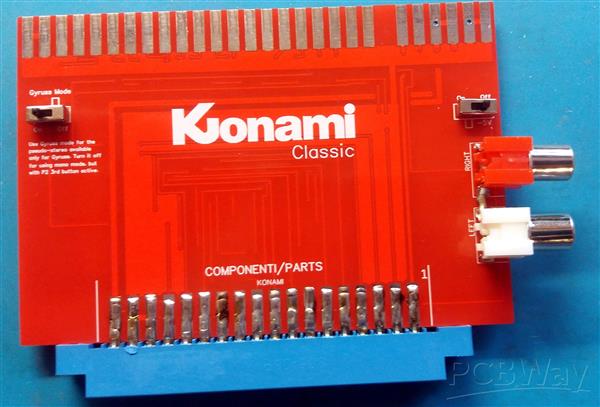

Konami to Jamma Adapter +stereo output and -5v
Konami to Jamma adapter with Stereo Sound and -5v selectable
You need the following part:
1x PCB Board socket 36pin (solder wire version)
2x mini vertical switch 3pins
2x RCA Female Connector for Audio output
Use the default options with 1.6 thickness.
DO NOT CONNECT PRE-AMPLIFIED SPEAKERS TO THE AUDIO OUTPUT ON THE ADAPTER !
Konami to Jamma Adapter +stereo output and -5v
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
PCBWay is not responsible
for issues caused by unsuitable parameter selections.
For more important ordering information, please refer to
