Components
|
CONN FFC FPC TOP 26POS 1MMMolex
|
x 1 | |
|
CABLE FFC 26POS 1.00MMMolex
|
x 1 |
Description

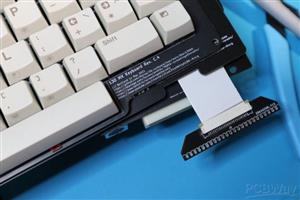

Keyboard adapter: Atari XE to FFC

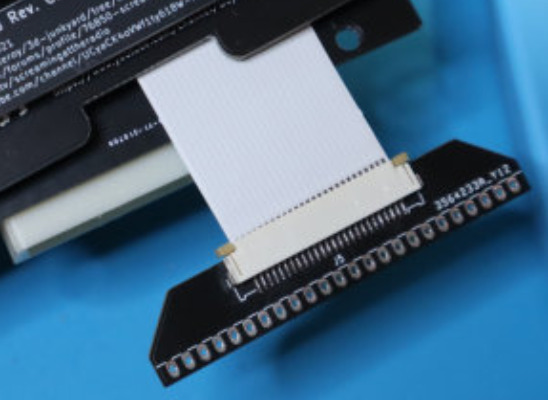

This adapter enables the connection of modern recreated keyboards to an Atari XE motherboard using a 26 position 1mm pitch FFC cable instead of the easily damaged membrane that comes with vintage keyboards.
On the Atari XE motherboard side, this can either plug directly into the original connector (manufacture in 0.8mm or less thickness), or be soldered onto standard pin headers.
Code

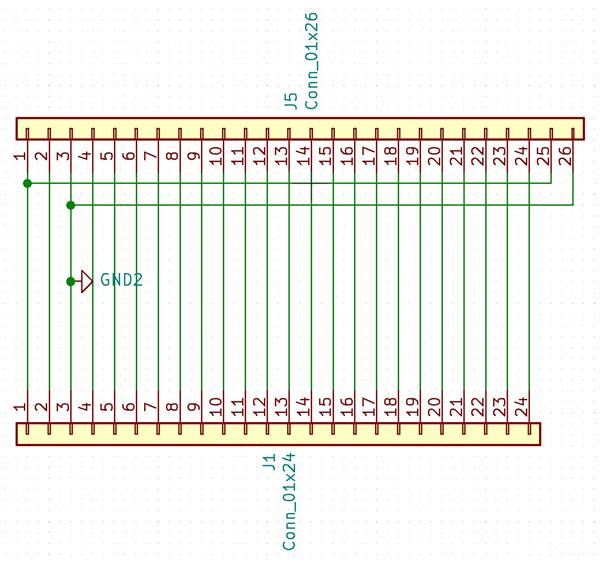

Schematic and Layout
Nov 21,2021
766 views
Keyboard adapter: Atari XE to FFC
Connect modern keyboard recreations for the Atari XE computers through FFC connectors into the original Atari connector or pin headers.
766
4
0
Published: Nov 21,2021
