Ikea Fado Kugellampe Wled Ball lamp Platine circuit board

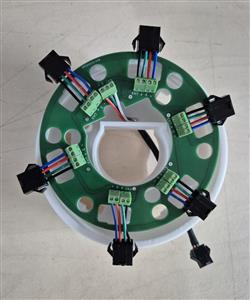

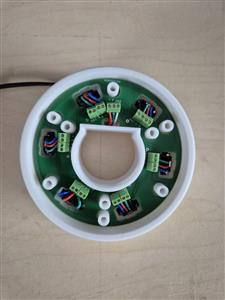

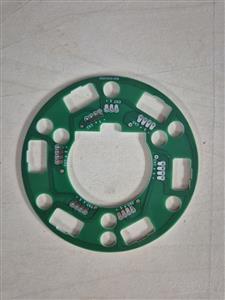

This board makes it easier to build the Ikea Fado ball lamp with Wled.
The files and instructions for the lamp can be found here:
https://www.cults3d.com/en/3d-model/home/ikea-fado-kugellampe-wled-ball-lamp
You can use terminal block KF128
6 x 4 PIN
1 x 3 PIN
look here for a video
https://www.youtube.com/watch?v=GSHjSdfIj0s
Just take a look here if you don't know Wled yet.
https://github.com/Aircoookie/WLED
Use at your own risk!!!

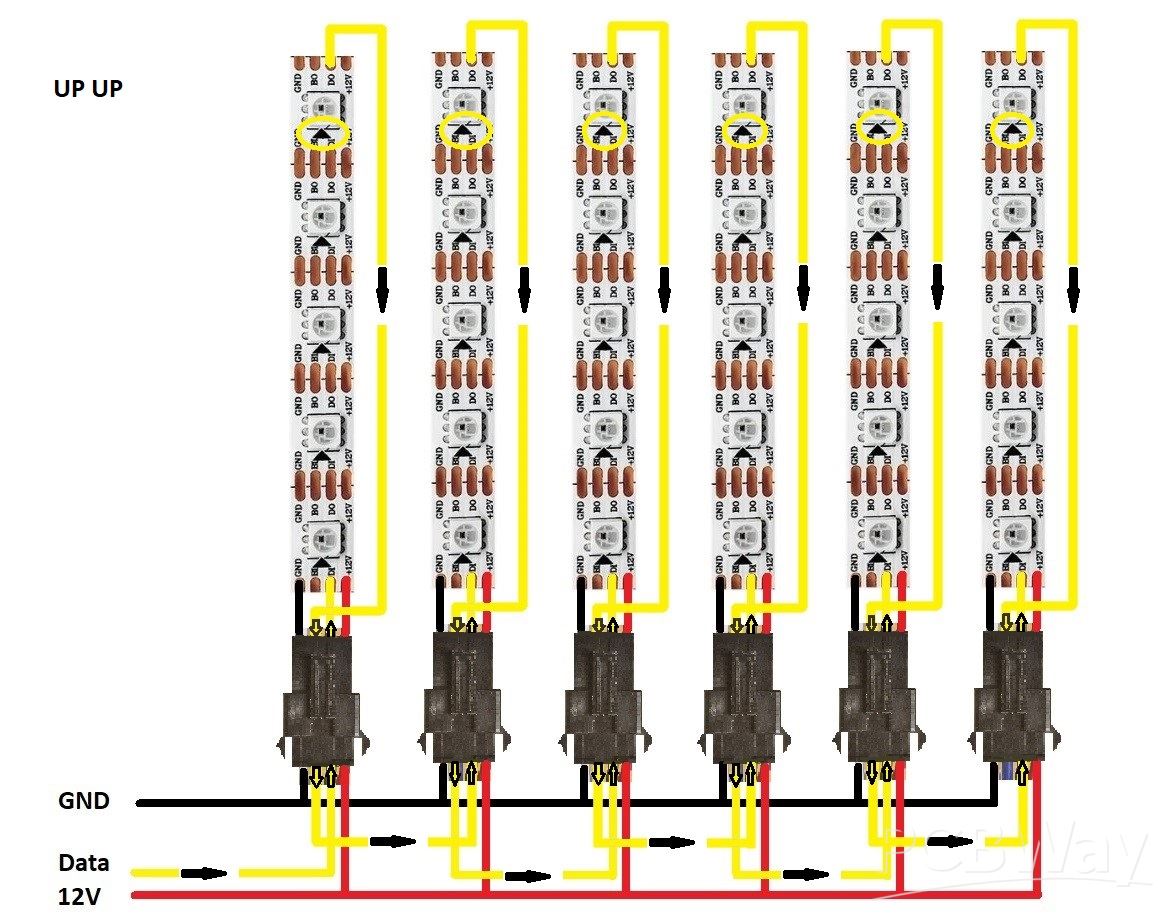

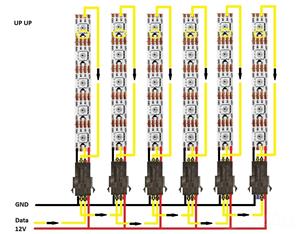

Schematic and Layout
board is only for Up Up version
