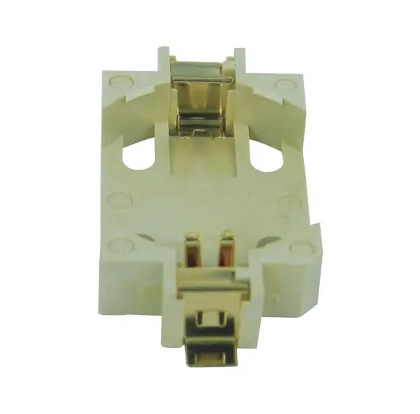

	RS Pro Battery Holder CMS CR2032 1854719 RS Pro	x 1

Description

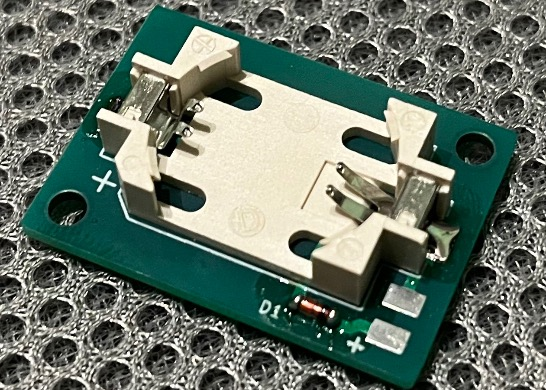

ICOM IC-7300 RTC clock battery replacement/repair

This PCB board can be used for repair RTC clock issue in amateur radio transceivers such ICOM IC-7100, IC-7300, IC-9700 and others (also other brands), where miniature Li-Ion cell is used as a RTC clock backup power supply.

See the video for repair details:

Download Gerbers Download BOM(Bill of materials)

Feb 28,2025

2,305 views

ICOM IC-7300 RTC clock battery replacement/repair

ICOM IC-7300 (and others) RTC clock battery replacement board by Lithium CR2032. It fixes RTC clock problem forever.
