Ground Plane for ublox L1/L2/L5 GNSS antenna

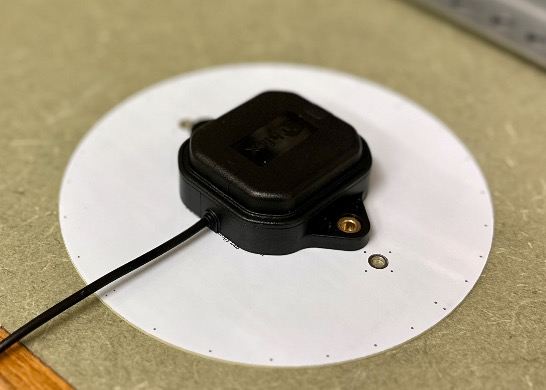

This GNSS patch antenna ground plane has a diameter of 15 cm and is compatible with ANN-MB0/1/2 (68 mm) and (95mm) mount hole spacing. The mounting holes are electrically connected to ground. Testing of this PCB FR-4 material with standard HASL-lead free finish and copper weight show comparable GNSS positioning and signal quality to a full metal disc of 1.5 mm thickness and the same diameter.
Ground Plane for ublox L1/L2/L5 GNSS antenna
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
