🕹️ GamePulse2040

GamePulse2040 is an open-source RP2040 handheld console for gaming, firmware development, and embedded experimentation.

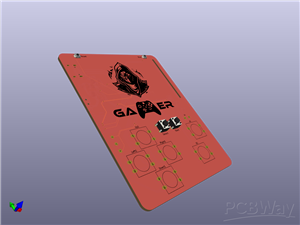

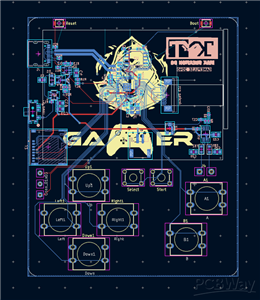

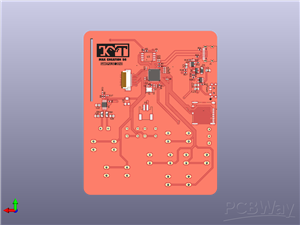

A compact RP2040-based handheld game console designed for experimenting with multiple firmware platforms, retro-style games, graphics, audio, storage, and embedded UI development. The board is built around the Raspberry Pi RP2040 microcontroller and includes an LCD display connector, microSD card interface, external flash memory, keyboard/button inputs, USB-C, battery power, audio output, and debug access.

The RP2040 is suitable for this type of project because it has a dual-core Arm Cortex-M0+ processor, 264 KB SRAM, USB support, PIO peripherals, and external flash boot support. Firmware can be loaded through the RP2040 USB boot mode using UF2 drag-and-drop flashing.

🚀 Project Overview

This board is intended to act as a small programmable game console. It can be used for:

👾 Retro-style 2D games

📟 Custom menu-based firmware

📱 Tiny handheld UI experiments

📺 Display driver testing

🎵 Audio playback experiments

💾 microSD-based asset loading

💻 RP2040 firmware development

🕹️ Emulator-style firmware experiments

🎓 Educational embedded systems learning

The design uses a flexible LCD display connector, so the final display module can be mounted compactly inside a handheld enclosure.

🛠️ Main Features

🧠 RP2040 main controller

📺 LCD display through FPC connector

💾 External flash memory and microSD card support

🔊 Audio amplifier and speaker output

🎮 Directional and function buttons

🔌 USB-C for power and programming

🔋 Battery input, charging and power regulation

🔧 Serial wire debugging support

⏱️ External crystal clock source

📦 UF2 firmware flashing support

🛠️ Hardware Blocks

🧠 RP2040 Core

The RP2040 is the main processor of the console. It handles display control, button input scanning, storage access, audio generation, USB communication, and game logic.

Main responsibilities include:

Running game firmware

Driving the LCD display

Reading keyboard and button inputs

Communicating with external flash memory

Reading files from microSD card

Generating audio output

Handling USB programming and debugging functions

📺 LCD Display Connector

The board includes an FPC connector for connecting a compact LCD display.

Typical display signals include:

SPI Clock

SPI Data

Chip Select

Data / Command

Reset

Backlight Control

Power and Ground

This allows the display to be integrated into a compact handheld enclosure.

⚡ Flash Memory

External flash memory stores the firmware and project resources.

The flash memory can store:

Main firmware

Game code

UI resources

Graphics assets

Configuration files

💾 microSD Card

The microSD card interface provides larger storage expansion.

Possible uses include:

Game files

Sprites

Audio samples

Save files

Configuration files

Firmware resources

Additional user content

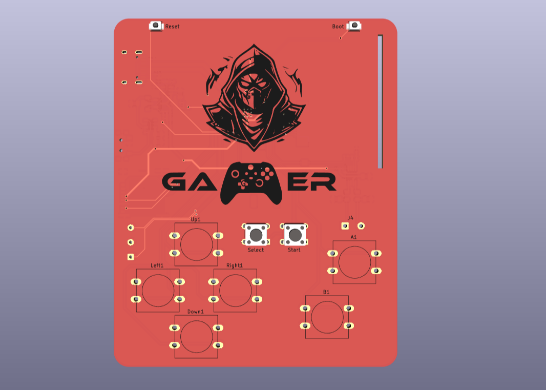

🎮 Button Controls

The board includes multiple push buttons for game control and menu navigation.

Possible mappings:

⬆️ Up

⬇️ Down

⬅️ Left

➡️ Right

🅰️ Action

🅱️ Back

▶️ Start

☰ Select

Button functionality depends on the installed firmware.

🔊 Audio Section

The audio section includes an amplifier and speaker output stage.

Possible audio features:

🔔 Beep sounds

🎵 Background music

🎮 Game sound effects

📢 PWM audio playback

🔔 Menu feedback sounds

Higher quality audio can be achieved through filtered PWM output and improved audio processing techniques.

🔌 USB-C Connector

USB-C is used for:

Power input

Firmware flashing

USB serial communication

Debug logging

To flash firmware:

Disconnect the board from USB.

Hold the BOOT button.

Connect the USB cable.

Release the button when RPI-RP2 appears.

Copy a UF2 firmware file.

The board automatically reboots into the new firmware.

🔋 Power System

The board includes voltage regulation and filtering to provide stable operation.

The power system includes:

Battery input

Voltage regulators

Filtering capacitors

Decoupling capacitors

Power switch

Battery charging circuitry

Good power filtering is important because the display, storage devices, and audio hardware can generate current spikes.

🔋 Battery and Charging

The board supports rechargeable lithium batteries.

Recommended precautions:

Use the correct battery type

Verify battery polarity

Check charging current limits

Avoid damaged batteries

Provide enclosure ventilation

Protect the battery mechanically

⏱️ Crystal Circuit

The RP2040 uses an external crystal oscillator for stable timing, USB communication, and accurate system operation.

🔧 Debug Interface

The board includes a debugging connector.

Supported activities:

SWD programming

Firmware debugging

Firmware recovery

Low-level hardware testing

Recommended tools include:

Raspberry Pi Debug Probe

CMSIS-DAP Probe

Picoprobe

OpenOCD-compatible debuggers

⚙️ Supported Firmware Platforms

💻 Pico SDK C/C++

Best for performance and low-level hardware control.

🔌 Arduino-Pico

Easy development with extensive library support.

🐍 MicroPython

Fast scripting and rapid prototyping.

💎 CircuitPython

Beginner-friendly firmware environment.

📦 Custom UF2 Firmware

Optimized standalone firmware builds.

🎮 Emulator Firmware

Possible when display, audio, and controls are supported.

📲 Firmware Flashing

RP2040 boards support USB mass-storage flashing.

Simply enter BOOTSEL mode and copy a UF2 file to the board.

This makes development and testing extremely convenient.

📝 Example Firmware Goals

Display initialization test

Button input test

microSD detection test

Flash memory read/write test

Audio playback test

Battery voltage monitoring

Game launcher menu

Demo games

Suggested first test order:

Power verification

RP2040 boot test

USB flashing test

Serial communication test

Display test

Button test

microSD test

Audio test

Charging test

Complete firmware test

💡 Development Notes

Before first power-up:

✔️ Check for shorts between 3.3V and GND

✔️ Verify USB-C wiring

✔️ Verify battery polarity

✔️ Check flash memory connections

✔️ Verify LCD connector pinout

✔️ Verify microSD voltage compatibility

✔️ Confirm decoupling capacitors are installed correctly

✔️ Use a current-limited power supply if available

🎯 Possible Applications

🎮 Open-source game console

🧠 RP2040 development platform

🎓 Educational embedded systems board

📺 Handheld UI controller

🕹️ Retro gaming platform

💾 Portable storage and media device

🔬 Embedded experimentation platform

🚀 Future Improvements

🔋 Battery fuel gauge

🔊 Improved audio amplifier

🎧 Headphone output

📺 Larger display support

💡 Adjustable backlight control

📳 Haptic vibration motor

🛡️ USB-C ESD protection

🔩 Enclosure mounting features

🧪 Additional test points

⚡ Power-path management

📡 Wireless connectivity

🌙 Low-power optimization

⚠️ Safety Warning

This project uses lithium battery charging circuitry. Incorrect battery connections, charging settings, or PCB design mistakes can damage hardware and batteries.

Always verify the power section before connecting expensive components or installing the board into an enclosure.

📄 License

This project can be released under:

MIT License

or

CERN Open Hardware Licence

MIT is recommended for simple firmware sharing.

CERN-OHL is recommended when sharing PCB hardware designs and encouraging open hardware development.

📌 Project Status

Hardware Design: In Progress

PCB Design: In Progress

Firmware Development: Planned

Display Testing: Pending

microSD Support: Pending

Audio Testing: Pending

Battery Validation: Pending

🎉 Credits

Designed as an RP2040-powered handheld gaming and experimentation platform for makers, developers, students, and embedded systems enthusiasts.
