Focus Wheel V2

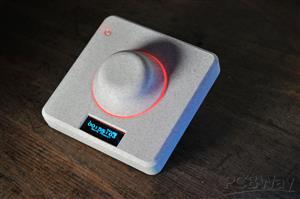

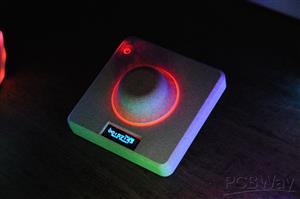

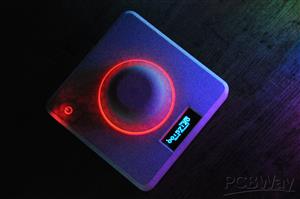

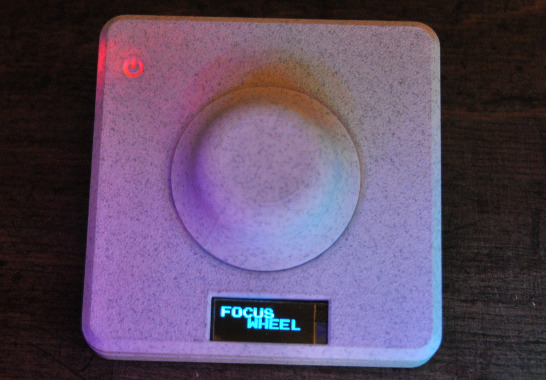

The Focus Wheel is a standalone, battery-powered focus timer designed to help you stay in the zone during study sessions and focused work. It combines a clean, minimal design with intuitive touch controls, a rotary encoder, and rich visual and audio feedback, all without relying on a phone or computer.

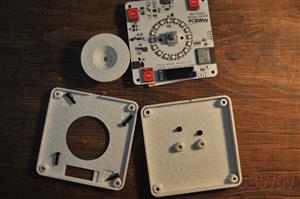

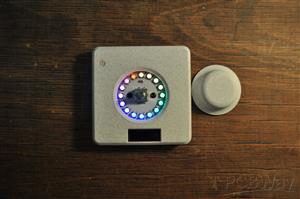

With customizable timers, an integrated 20-20 rule, smooth LED animations, and USB-C charging, Focus Wheel turns time management into a calm, tactile experience. Built around a custom PCB and an ESP32, it’s both a practical productivity tool and a rewarding hardware project, made for makers who appreciate thoughtful design and deep focus.
The full blog can be found on Instructables: https://www.instructables.com/Focus-Wheel-20-Your-Next-Gen-Study-Assistant/
Focus Wheel V2
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
Please review the designer's notes (e.g., PCB thickness) and select the appropriate options.
