Description

FlipperMCE

FlipperMCE

FlipperMCE is a fully open source Nintendo GameCube Memory Card Emulator (MCE), based on the famous sd2psx PlayStation 2 MCE designed by @xyzz.

It implements the GameCube Memory Card protocol and is able to emulate cards from 59 blocks (0.5 MB / 4 MBit) up to 1019 blocks (8 MB / 64 MBit).

Each card image is saved as a dedicated .raw file in its respective folder on the SD card.

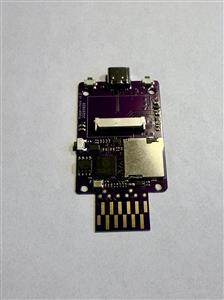

This PCB incorporates a flex socket for an i2c 0.96 inch OLED screen. Please make sure to order this screen separately.

It can be found on AliExpress etc:

https://de.aliexpress.com/item/1005005260389770.html

Please make sure to order a version with flex Connector, not solder interface!

For more information on the project, visit https://flippermce.github.io/

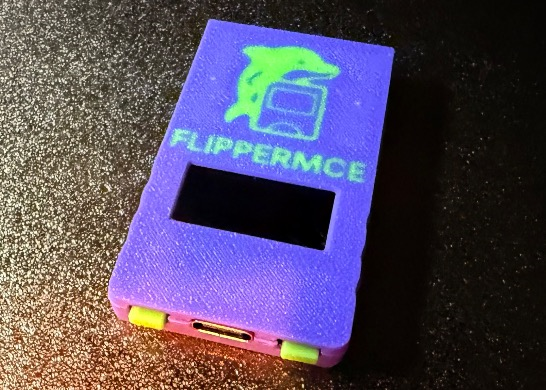

Case files can be found at: https://github.com/FlipperMCE/pcb/tree/main/case

Download Gerbers Download BOM(Bill of materials)

Sep 15,2025

3,569 views

FlipperMCE

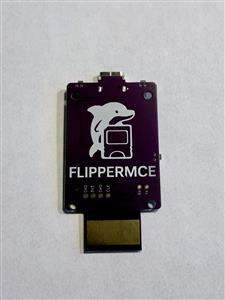

2 Layers PCB 32.2 x 59.4 mm FR-4, 0.8 mm, 1, Immersion gold, Purple Solder Mask, White silkscreen

FlipperMCE is a fully open source Nintendo GameCube Memory Card Emulator (MCE)

3569

Published: Sep 15,2025

Standard PCB

Download Gerber file 27

BOM(Bill of materials)

Centroid file

PCBWay Donate 10% cost To Author

File Last Updated: 2025/09/18 (GMT+8)
