LED 3mm |
x 3 | |
|
|
Battery holder 3V smd |
x 1 | |
|
|
Micro switch 6x6x5mm 4pins |
x 1 | |
|
|
Coin battery 3V CR2032 |
x 1 |
Flashlight PCB - customizable
This is an educational project designed to teach soldering techniques for assembling small electronic components like LEDs, switches and battery holders onto a stylish, practical and customizable flashlight PCB.

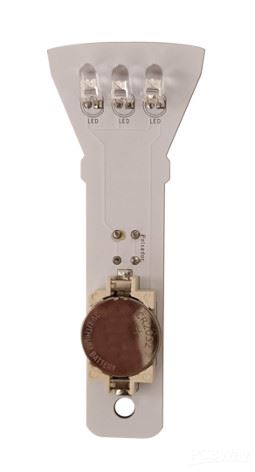

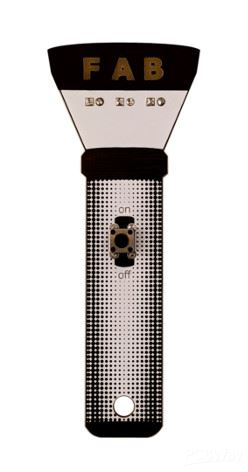

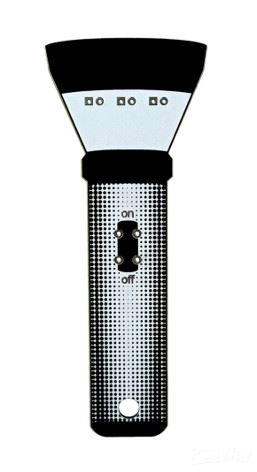

This design was modified several times, because of that you could see different versions in the photos below. The up-to-date version is the first one with a curved line on the upper side (first pic), instead of a straight line.
Project designed in collaboration with FAB - Casa del Mig (Barcelona; Oriol Blas and Ricard Gómez)
Flashlight PCB - customizable
Project images are for reference only. Actual production is based on the manufacturing files on the project page.
