Tools, APP Software Used etc.

OnShape

Description

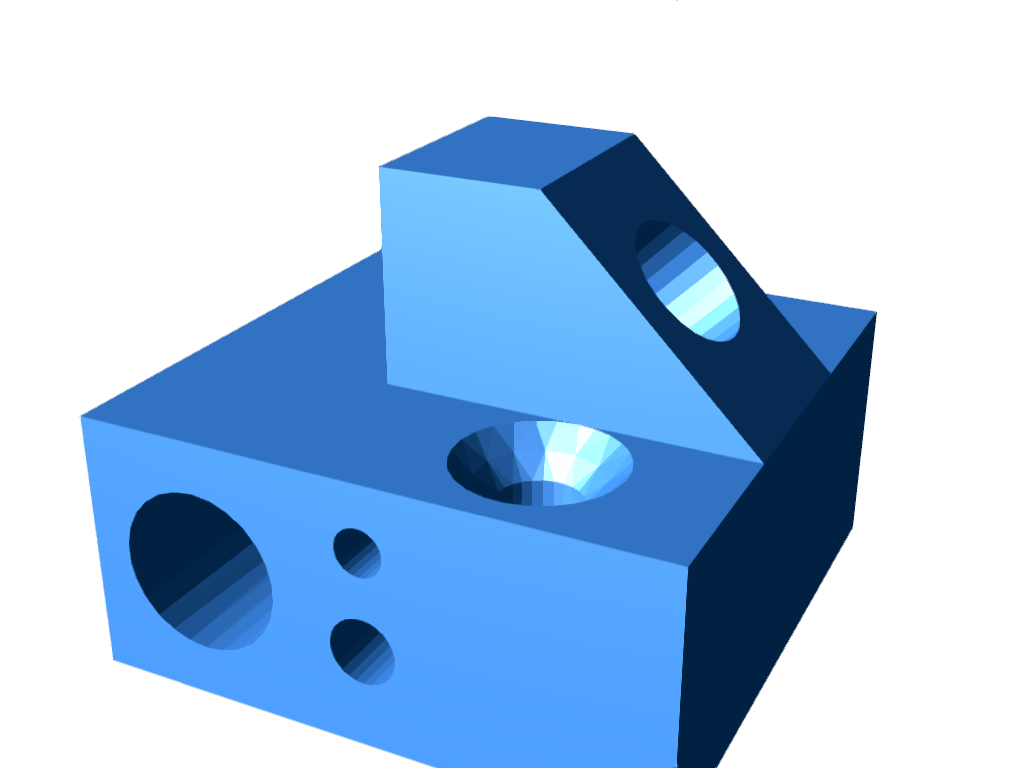

Ender 3 heat block 45 degree tilted nozzle

This custum 3d printer heat block can turn an ordinary 3d printer into a extrodinary 3d printer. With this custom heatblock, you can 3d print in 4 axes and eliminate the need for support materials when printing. This part can also be used to build a tilted nozzle 4 axis 3d printer.

CAD-Custom parts and enclosures

HeatBlock

C-1C1W865669A_HeatBlock Copy 1.step

Hestblock final drawing.pdf

HeatBlock Copy 1.step

Feb 22,2026

224 views

Ender 3 heat block 45 degree tilted nozzle

This is a heat block that can tilt the nozzle of any 3d printer 45 degrees, and is useful for building a printer that doesn't need supports.
