Description
ESP32-WBDB-02

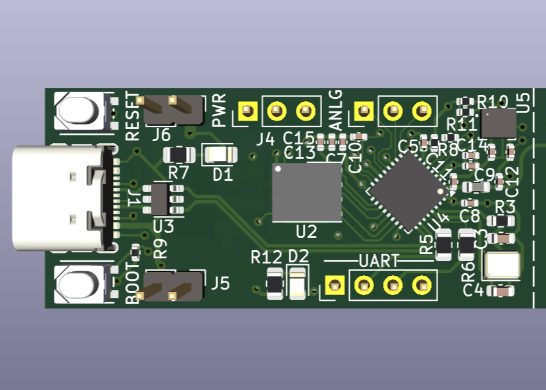

This was my first ever PCB which I designed from scratch and got it manufactured. It was completely assembled with my own hands using a hot air gun and a soldering iron. I made this when I was in college as a fun project which also taught me important concepts about PCB Design. The purpose was to learn PCB Designing as well as create a development board that has a IMU on-board for making a Harry potter wand using Digital Signal Processing. Although I ended up never making the wand due to other reasons it still is one of my best PCBs (I'm a Embedded Software Developer not a PCB Designer) Hope you guys still like this :)
Oct 09,2025
292 views
ESP32-WBDB-02

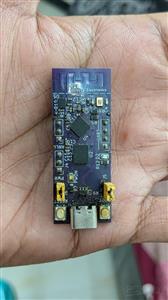

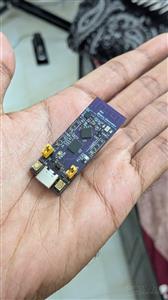

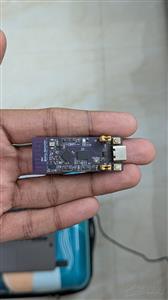

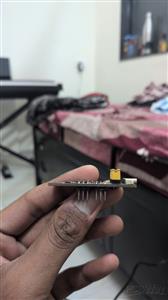

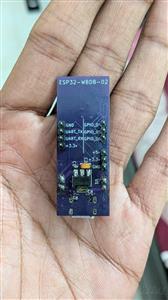

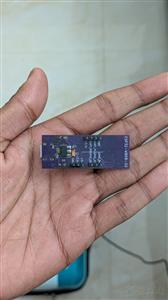

A custom made Development board based on the ESP32-C3 MCU.
