NPN TransistorsAliExpress
|
x 1 | |
|
|
2.2k Ohm resistorsAliExpress
|
x 1 |

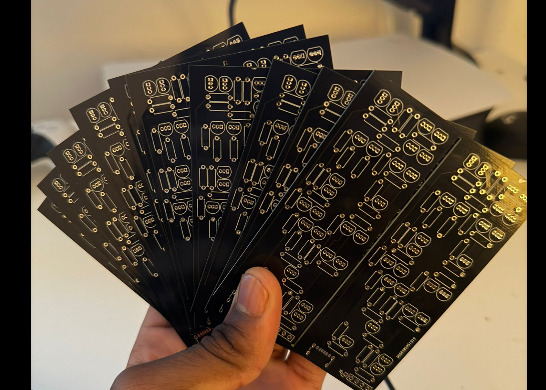

Data Flip-Flop From Transistors!

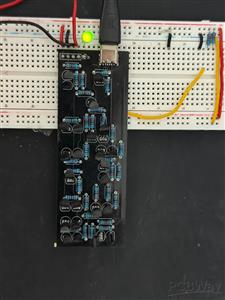

This is computer memory made from scratch as a smaller part of my transistor CPU project but this can be used as a standalone circuit to explain how RAM and registers work at the most basic level. After soldering everything correctly, you must make sure that you wire the board up as follows: Use your left thumb to cover the USB C port and the header pins should be connected from top to bottom with the top pin being the output going into an LED that goes to ground. The next pin below the LED output pin is the Data Input Pin. The pin below that is the Clock input pin.The next pin is the GND pin and the lowest and final pin is the +5V input pin.
Data Flip-Flop From Transistors!
